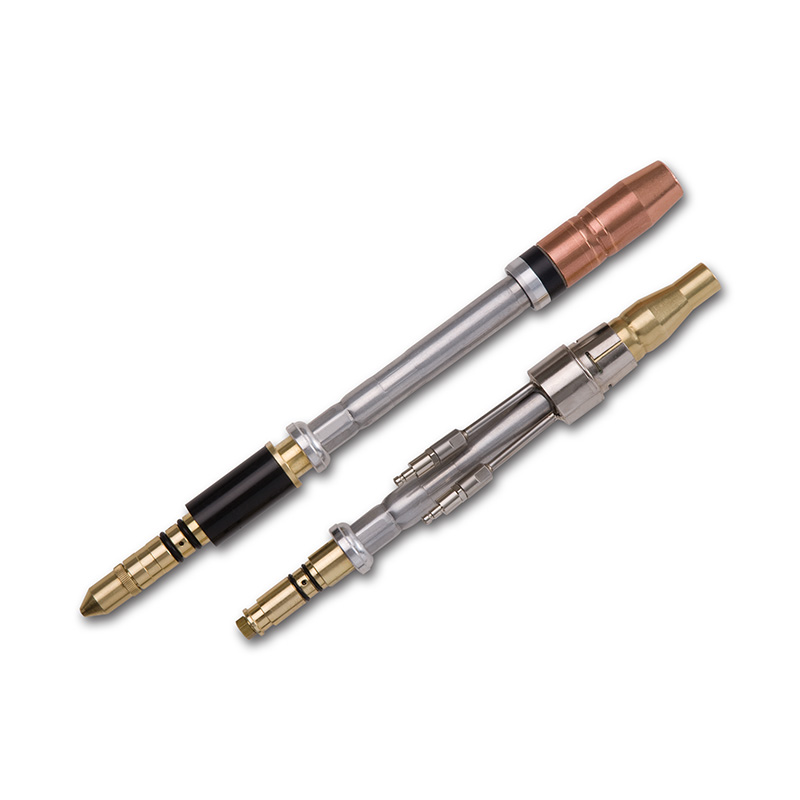

Auto Head Fixed Automatic MIG Guns
Built to mount directly to your wire feeder, the Tregaskiss® Auto Head delivers 550 amps at a 100% duty cycle for automated hard tooling applications, in air-cooled or I.C.E.™ enhanced models.
- Cable free design
- Fast, simple service
- Steel or aluminum
Overview
Tregaskiss® Auto Head fixed automatic MIG guns connect directly to a wire feeder, eliminating the cable and bringing the same robust design as Tregaskiss fixed automatic guns to automated hard tooling. Rated at 550 amps with a 100% duty cycle on CO₂ and mixed gases, they’re built for heavy-duty production welding. Choose air-cooled models, or add I.C.E.™ technology to circulate water at the nozzle for cooler-running, longer-lasting consumables. AccuLock™ R consumables and simple internal connections keep maintenance quick and uptime high.
Specifications
| Amperage Rating | 550 Amps 100% Duty-Cycle with CO₂ and Mixed Gases |
|---|---|
| Compliance | Ratings based on tests that comply with IEC 60974-7 standards. |
| Cooling | Air-Cooled or I.C.E.™ |
| Wire Size Range | Wire size: 0.030″–3/32″ (0.8–2.4 mm) Aluminum: 0.035″–1/16″ (0.9–1.6 mm) |
| Connection | Direct to wire feeder (no cable) |
| Consumable System | AccuLock R |
| Torch Style | Fixed automatic, auto head |
Consumables
Recommended: AccuLock™ R
Also compatible: TOUGH LOCK® (select parts)
Liners: Rear-load liners come standard; aluminum setups use rear-load aluminum liners with a jump liner.
See spec sheet for nozzle, contact tip, and liner part numbers.
Accessories
Sold separately. Refer to the spec sheet for part numbers and details.
Part Numbering
I M 52 06 -A45 -5 -460 -9 → IM5206-A45-5-460-9
│ │ │ │ │ │ │ └─ Liner (optional)
│ │ │ │ │ │ └────── Neck (optional)
│ │ │ │ │ └─────────── Nozzle (optional)
│ │ │ │ └──────────────── Wire size
│ │ │ └───────────────────── Length
│ │ └───────────────────────── Gun model (52 = 550 A)
│ └───────────────────────────── Power pin (optional)
└───────────────────────────────── I.C.E. (only if configured)| Option | Codes | Default if left blank |
|---|---|---|
| Power pin | M Miller® · TW Tweco® #5 | Tweco® #4 |
| Wire size | -A30 0.030″ · -A35 0.035″ · -A39 1.0 mm · -A45 0.045″ · -A52 0.052″ · -A16 1/16″ · -A64 5/64″ · -A32 3/32″ | — |
| Nozzle | -5 401-5-62 · -9 401-30-62 | 401-6-62 |
| Neck | -460 60° · -560 60° (long) · -445 45° · -422 22° | 405-180NB (180°) |
| Liner | -9 for aluminum wire | 415-116 |
-460 and -560 necks are air-cooled only.
