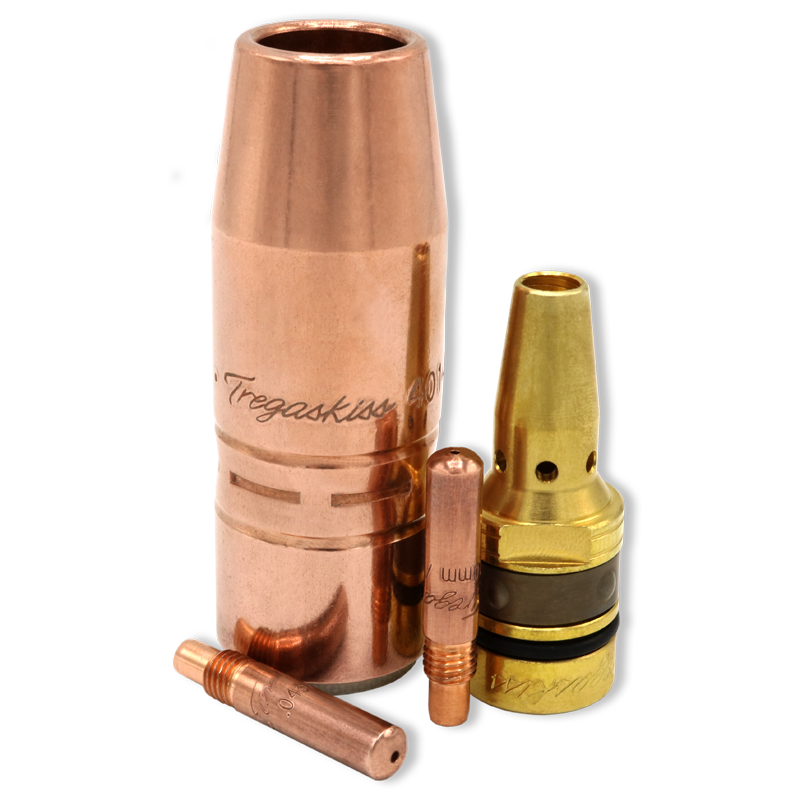

TOUGH LOCK consumables family shown with contact tips, retaining head and nozzle

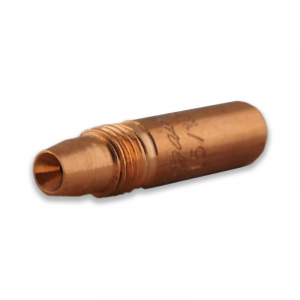

TOUGH LOCK contact tip shown from bottom at 45-degree angle

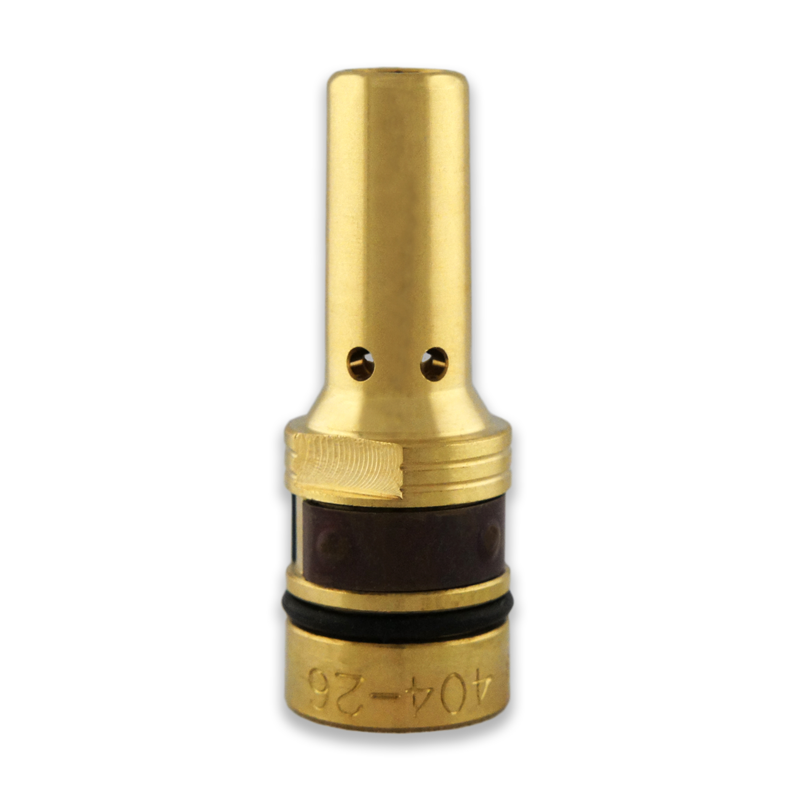

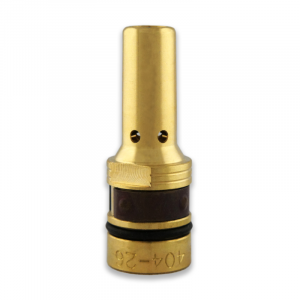

TOUGH LOCK retaining head shown from front

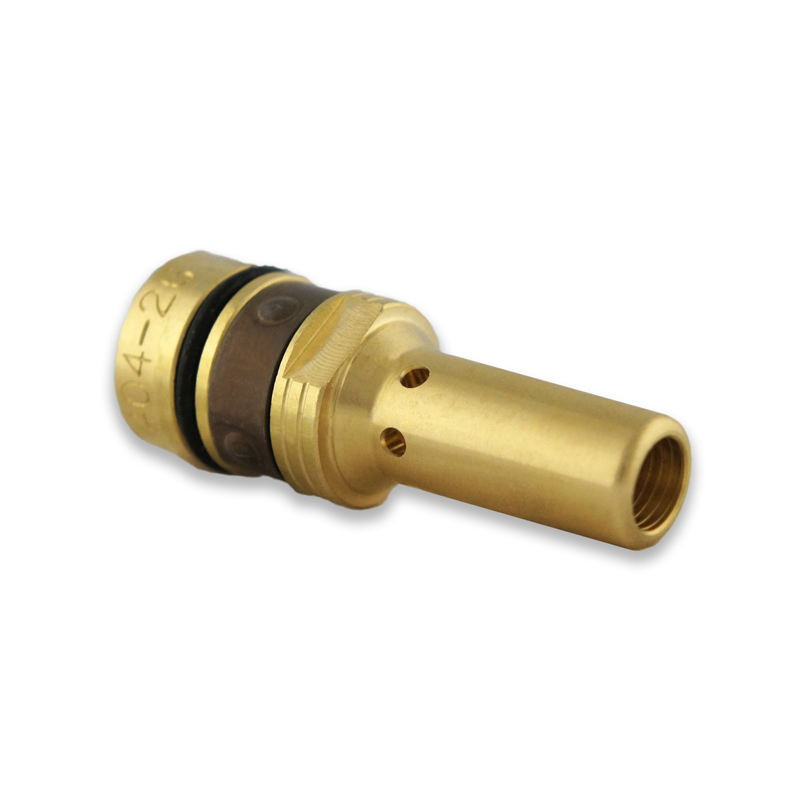

TOUGH LOCK retaining head shown from top at 45-degree angle

TOUGH LOCK Consumables

Tregaskiss® TOUGH LOCK® consumables run cooler and stay tight, reducing consumable costs and maintenance downtime across robotic, automatic, and semi-automatic MIG guns.

SEMI-AUTO & ROBOTIC

GMAW/MIG

COMMON CONSUMABLES PLATFORM

COOLER TIP TEMPS

DUAL TAPER SEAT

GENUINE OEM

View product documentation Request more info

Overview

Part of the Common Consumables Platform™, Tregaskiss® TOUGH LOCK® consumables are a well-known, trusted choice for reducing consumable costs and maintenance downtime. TOUGH LOCK contact tips are made from high-quality, high-conductivity copper using a mandrel-drawn process that tightly controls tip tolerances. Paired with TOUGH LOCK retaining heads, greater surface contact between the tip, retaining head, and neck maximizes heat dissipation, so tips run cooler and last longer. Dual Taper Technology creates a more secure seat that keeps the tip and retaining head from loosening due to vibration. Tregaskiss nozzles are made of hard-drawn copper or brass with a smooth finish and rounded edges that minimize spatter buildup. Not running a Bernard® or Tregaskiss gun? The TOUGH LOCK Conversion Series lets you upgrade many other brands of MIG guns.

Specifications

Compatible guns	TA3, Atlas, CA3, 600amp Water Cooled MIG Gun, MW1, MA1; Bernard® BTB, TGX™, and Clean Air™ guns; select other brands with the Conversion Series
Wire sizes	0.023″–1/8″ (0.6–3.2 mm)
System components	Contact tips, retaining heads/diffusers, nozzles
Duty levels	Standard duty (SD), heavy duty (HD), extra heavy duty
Contact tips	SD (0.250″ O.D.), HD and chrome zirconium (0.310″ O.D.), extra HD (0.375″ O.D.), HDP
Nozzle styles	Slip-on and thread-on; air-cooled and water-cooled
Applications	Automotive, general manufacturing & fabrication

Consumables

Contact Tips

TOUGH LOCK SD Contact Tips (0.250″ O.D.)

Part Number	Description
403-14-23-25	0.023″ (0.6 mm); qty. 25
403-14-30	0.030″ (0.8 mm); qty. 100
403-14-35	0.035″ (0.9 mm); qty. 100

TOUGH LOCK SD Tapered Contact Tips (0.250″ O.D.)

Part Number	Description
403-12-30-25	0.030″ (0.8 mm); qty. 25
403-12-35-25	0.035″ (0.9 mm); qty. 25
403-12-45-25	0.045″ (1.2 mm); qty. 25

TOUGH LOCK HD Contact Tips (0.310″ O.D.)

Part Number	Description
403-20-30	0.030″ (0.8 mm); qty. 100
403-20-35	0.035″ (0.9 mm); qty. 100
403-20-1.0	0.040″ (1.0 mm); qty. 100
403-20-45	0.045″ (1.2 mm); qty. 100
403-20-364	3/64″ (1.2 mm); qty. 100
403-20-52	0.052″ (1.3 mm); qty. 100
403-20-1.4	0.055″ (1.4 mm); qty. 100
403-20-116	1/16″ (1.6 mm); qty. 100
403-20-1.8	0.072″ (1.8 mm); qty. 100
403-20-78	0.078″ (2.0 mm); qty. 100
403-20-564	5/64″ (2.0 mm); qty. 100
403-20-332	3/32″ (2.4 mm); qty. 100

TOUGH LOCK HD Tapered Contact Tips (0.310″ O.D.)

Part Number	Description
403-21-30	0.030″ (0.8 mm); qty. 100
403-21-35	0.035″ (0.9 mm); qty. 100
403-21-1.0	0.040″ (1.0 mm); qty. 100
403-21-45	0.045″ (1.2 mm); qty. 100
403-21-52	0.052″ (1.3 mm); qty. 100
403-21-116	1/16″ (1.6 mm); qty. 100

TOUGH LOCK Extended Life Contact Tips; Chrome Zirconium (0.310″ O.D.)

Part Number	Description
403-27-30	0.030″ (0.8 mm); qty. 100
403-27-35	0.035″ (0.9 mm); qty. 100
403-27-1.0	0.040″ (1.0 mm); qty. 100
403-27-45	0.045″ (1.2 mm); qty. 100
403-27-364	3/64″ (1.2 mm); qty. 100
403-27-52	0.052″ (1.3 mm); qty. 100

TOUGH LOCK Extra HD Contact Tips (0.375″ O.D.)

Part Number	Description
603-20-1.0-25	0.040″ (1.0 mm); qty. 25
603-20-45-25	0.045″ (1.2 mm); qty. 25
603-20-364-25	3/64″ (1.2 mm); qty. 25
603-20-52-25	0.052″ (1.3 mm); qty. 25
603-20-1.4-25	0.055″ (1.4 mm); qty. 25
603-20-116-25	1/16″ (1.6 mm); qty. 25
603-20-564-25	5/64″ (2.0 mm); qty. 25
603-20-332-25	3/32″ (2.4 mm); qty. 25
603-20-764-25	7/64″ (2.8 mm); qty. 25
603-20-18-25	1/8″ (3.2 mm); qty. 25

TOUGH LOCK HDP Contact Tips
Made from a special alloy that resists arc erosion and wear, HDP tips can last up to 10x longer than copper and chrome zirconium tips, depending on the application, with improved arc stability and reduced spatter.

Part Number	Description
403-40-35-05	0.035″ (0.9 mm); qty. 5
403-40-35-25	0.035″ (0.9 mm); qty. 25
403-40-35	0.035″ (0.9 mm); qty. 100
403-40-40-05	0.040″ (1.0 mm); qty. 5
403-40-40-25	0.040″ (1.0 mm); qty. 25
403-40-40	0.040″ (1.0 mm); qty. 100
403-40-45-05	0.045″ (1.2 mm); qty. 5
403-40-45-25	0.045″ (1.2 mm); qty. 25
403-40-45	0.045″ (1.2 mm); qty. 100

Teach Tips (0.310″ O.D.)

Part Number	Description
403-20-01	Adjustable; qty. 1
403-20-05	1/2″; qty. 1
403-20-062	5/8″; qty. 1
403-20-075	3/4″; qty. 1
403-20-10mm	10 mm; qty. 1
403-20-15mm	15 mm; qty. 1

Tip Tool

Part Number	Description
450-18	TOUGH LOCK tip tool; qty. 1

Retaining Heads / Diffusers; Robotic

Part Number	Description
404-14-25	SD, single taper, slip-on, brass; qty. 25
404-18	SD, dual taper, slip-on, brass; qty. 100
404-22	HD, single taper with set screw for liner retention, slip-on, brass; qty. 100
404-30	HD, standard robotic, slip-on, brass; qty. 100
404-32	HD, dual taper, standard robotic, slip-on, brass; qty. 100
404-36-25	HD, single taper, slip-on, copper; qty. 25
404-52-25	HD, dual taper, standard robotic, thread-on, brass; qty. 25
404-71	HD diffuser, thread-on, copper; for 600 A robotic water-cooled guns; qty. 25

Retaining Heads / Diffusers; Semi-Automatic

Part Number	Description
154-14	SD, single taper, slip-on, brass; for 180 A TGX™ guns; qty. 25
404-14-25	SD, single taper, slip-on, brass; qty. 25
404-20	HD, single taper, slip-on, brass; qty. 100
404-26	HD, dual taper, standard, slip-on, brass; qty. 100
404-38-25	HD diffuser, thread-on, copper; for 62 and 64 series water-cooled guns with 601 series nozzles; qty. 25
404-44	HD, Bernard® legacy neck conversion, slip-on, brass; qty. 100
404-53-25	HD, dual taper, standard, thread-on, brass; qty. 25

Other quantities available; contact customer service.

Nozzles; Light Duty (slip-on, for 154-14 diffuser)

Part Number	Description
151-1-50	1/2″ bore, 1/8″ recess, tapered, brass; qty. 10

Nozzles; SD Air-Cooled, Slip-On (for 404-32 robotic or 404-26 semi-auto)

Part Number	Description
401-40-38	3/8″ bore, 1/16″ recess, tapered, brass, 0.978″ O.D.; qty. 10
401-4-38	3/8″ bore, flush, tapered, copper, 0.938″ O.D.; qty. 10
401-4-50	1/2″ bore, 1/8″ recess, tapered, copper, 0.938″ O.D.; qty. 10
401-4-62	5/8″ bore, 1/8″ recess, tapered, copper, 0.938″ O.D.; qty. 10
401-42-50	1/2″ bore, 1/8″ recess, bottleneck, brass, 0.938″ O.D.; qty. 10
401-44-50	1/2″ bore, 1/4″ stick-out, bottleneck, brass, 0.938″ O.D.; qty. 10
401-44-62	5/8″ bore, 1/4″ stick-out, tapered, copper, 0.938″ O.D.; qty. 10
401-48-50	1/2″ bore, 1/8″ stick-out, bottleneck, brass, 0.938″ O.D.; qty. 10
401-48-50C	1/2″ bore, 1/8″ stick-out, bottleneck, copper, 0.938″ O.D.; qty. 10
401-8-62	5/8″ bore, 1/8″ stick-out, tapered, copper, 0.938″ O.D.; qty. 10

Nozzles; SD Air-Cooled, Thread-On (for 404-52 robotic or 404-53 semi-auto)

Part Number	Description
401-18-62	5/8″ bore, 1/8″ stick-out, tapered, copper, 0.938″ O.D.; qty. 10
401-42-38	3/8″ bore, 1/8″ recess, tapered, copper, 0.938″ O.D.; qty. 10
401-43-62	5/8″ bore, 1/8″ recess, tapered, copper, 0.938″ O.D.; qty. 10

Nozzles; HD Air-Cooled, Slip-On (for 404-32 robotic or 404-26 semi-auto)

Part Number	Description
401-48-62	5/8″ bore, flush, bottleneck, copper, 1.062″ O.D.; qty. 10
401-49-62	5/8″ bore, 1/8″ stick-out, bottleneck, copper, 1.062″ O.D.; qty. 10
401-50-62	5/8″ bore, 5 mm recess, bottleneck, copper, 1.062″ O.D.; qty. 10
401-51-62	5/8″ bore, flush, bottleneck, brass, 1.062″ O.D.; qty. 10
401-5-62	5/8″ bore, 1/4″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-5-75	3/4″ bore, 1/4″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-6-50	1/2″ bore, 1/8″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-6-62	5/8″ bore, 1/8″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-6-75	3/4″ bore, 1/8″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-71-62	5/8″ bore, 1/8″ recess, tapered, brass, 1.106″ O.D.; qty. 10
401-72-62	5/8″ bore, 1/8″ recess, tapered, brass, 1.062″ O.D.; qty. 10
401-7-62	5/8″ bore, 1/4″ recess, tapered, brass, 1.106″ O.D.; qty. 10
401-7-75	3/4″ bore, 1/8″ recess, tapered, brass, 1.106″ O.D.; qty. 10
401-7-87	7/8″ bore, 1/4″ recess, straight, brass, 1.106″ O.D.; qty. 10
401-81-62	5/8″ bore, 1/8″ stick-out, tapered, copper, 1.062″ O.D.; qty. 10
401-87-56	9/16″ bore, 1/8″ recess, tapered, brass, 1.062″ O.D.; qty. 10
401-87-62	5/8″ bore, 1/8″ stick-out, tapered, brass, 1.062″ O.D.; qty. 10
401-88-62	5/8″ bore, flush, tapered, brass, 1.062″ O.D.; qty. 10
401-9-75	3/4″ bore, 1/2″ recess, tapered, copper, 1.062″ O.D.; for Miller® HD MIG process; qty. 10

Nozzles; HD Air-Cooled, Thread-On (for 404-52 robotic or 404-53 semi-auto)

Part Number	Description
401-14-62	5/8″ bore, 1/4″ recess, tapered, copper, 1.062″ O.D.; qty. 10
401-20-62	5/8″ bore, 1/8″ stick-out, tapered, copper, 1.062″ O.D.; qty. 10
401-41-62	5/8″ bore, 1/8″ stick-out, tapered, brass, 1.062″ O.D.; qty. 10
401-53-62	5/8″ bore, 1/8″ stick-out, tapered, brass, 1.062″ O.D.; qty. 10

Nozzles; HD Water-Cooled (for 600 A T-Gun™ and TOUGH GUN® automatic water-cooled guns; use 404-38 diffuser and 601-5-75-3 insulator)

Part Number	Description
601-5-62	5/8″ bore, 1/4″ recess, tapered, nickel-plated bronze, 1.225″ O.D.; qty. 10
601-6-62	5/8″ bore, 1/8″ recess, tapered, nickel-plated bronze, 1.225″ O.D.; qty. 10
601-5-75	3/4″ bore, 1/4″ recess, tapered, nickel-plated bronze, 1.225″ O.D.; qty. 10
601-6-75	3/4″ bore, 1/8″ recess, tapered, nickel-plated bronze, 1.225″ O.D.; qty. 10
