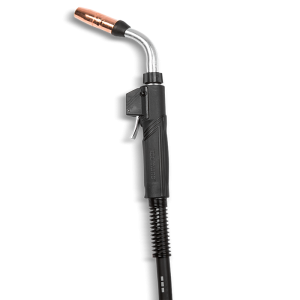

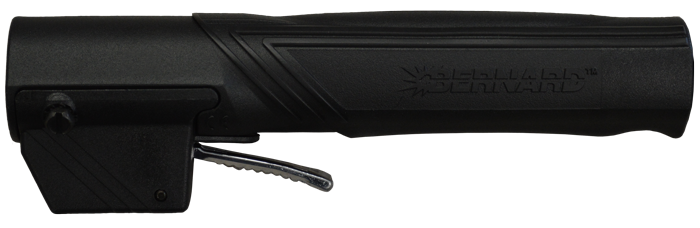

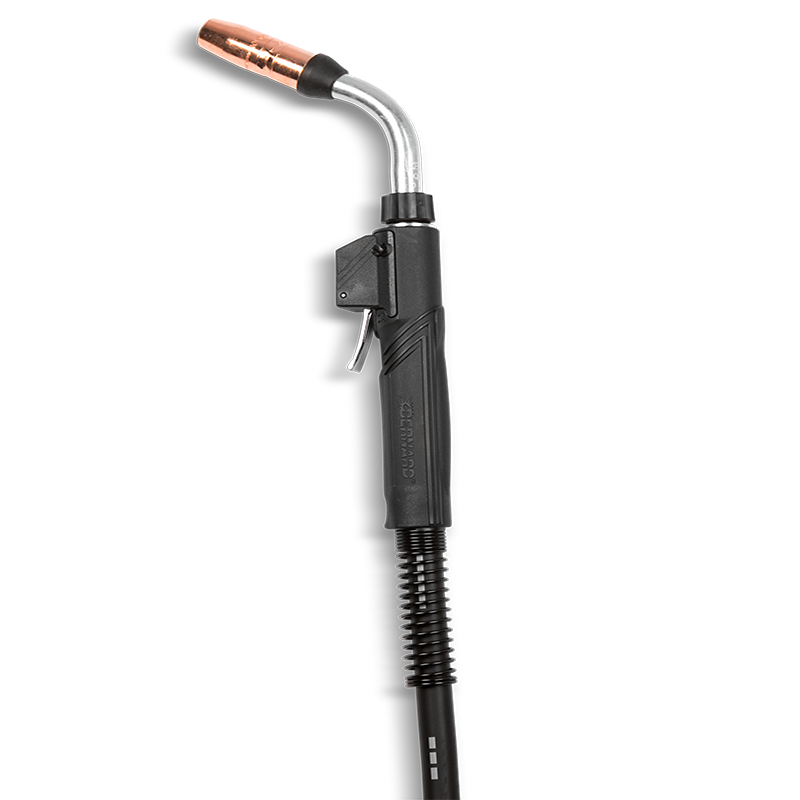

T series straight handle option for BTB semi-automatic air-cooled MIG guns

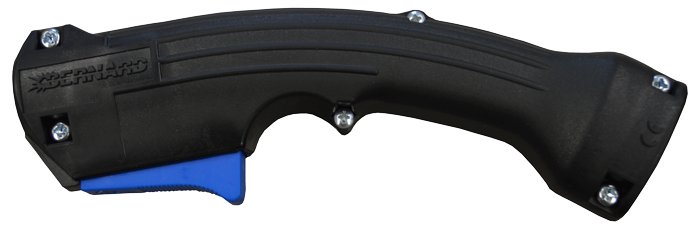

O series small curved handle option for BTB semi-automatic air-cooled MIG guns

S-Gun™ Semi-Automatic Air-Cooled MIG Guns

The Bernard® S-Gun's steel monocoil cable resists pinching to keep gas flowing and wire feeding reliably, even in hard-to-feed applications, so you spend less time on downtime and more time welding.

250-400 AMP

AIR-COOLED

DUTY-CYCLE 60%

ACCULOCK™ S CONSUMABLES

GMAW/MIG

2 HANDLE STYLES

View product documentation Request more info

Configured for your job
Handles a wide range of wire
Durable Build

Overview

Weld longer with less downtime. The Bernard® S-Gun’s steel monocoil cable stands up to pinching and crushing, keeping gas flow consistent and wire feeding smoothly even in hard-to-feed applications. Configure it with the neck, handle, and trigger that fit your operators, plus AccuLock™ S consumables, for a gun built around your work. The result is better comfort, higher productivity, and a lower total cost of ownership. Available in 250, 300, and 400 amps.

Specifications

Amperage rating	250, 300 & 400 Amp 60% Duty Cycle with Mixed Gases
Cooling	Air-Cooled
Wire Size Range	0.030″–5/64″ (0.8–2.0 mm)
Cable Lengths	15, 20, 25ft
Consumable System	Acculock S

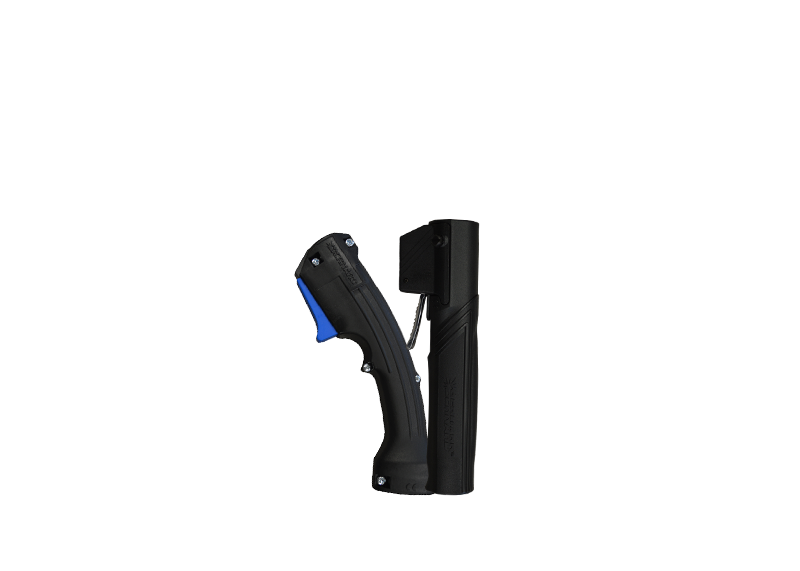

Handle Styles	O Series Small Curved, T Series Straight

Consumables

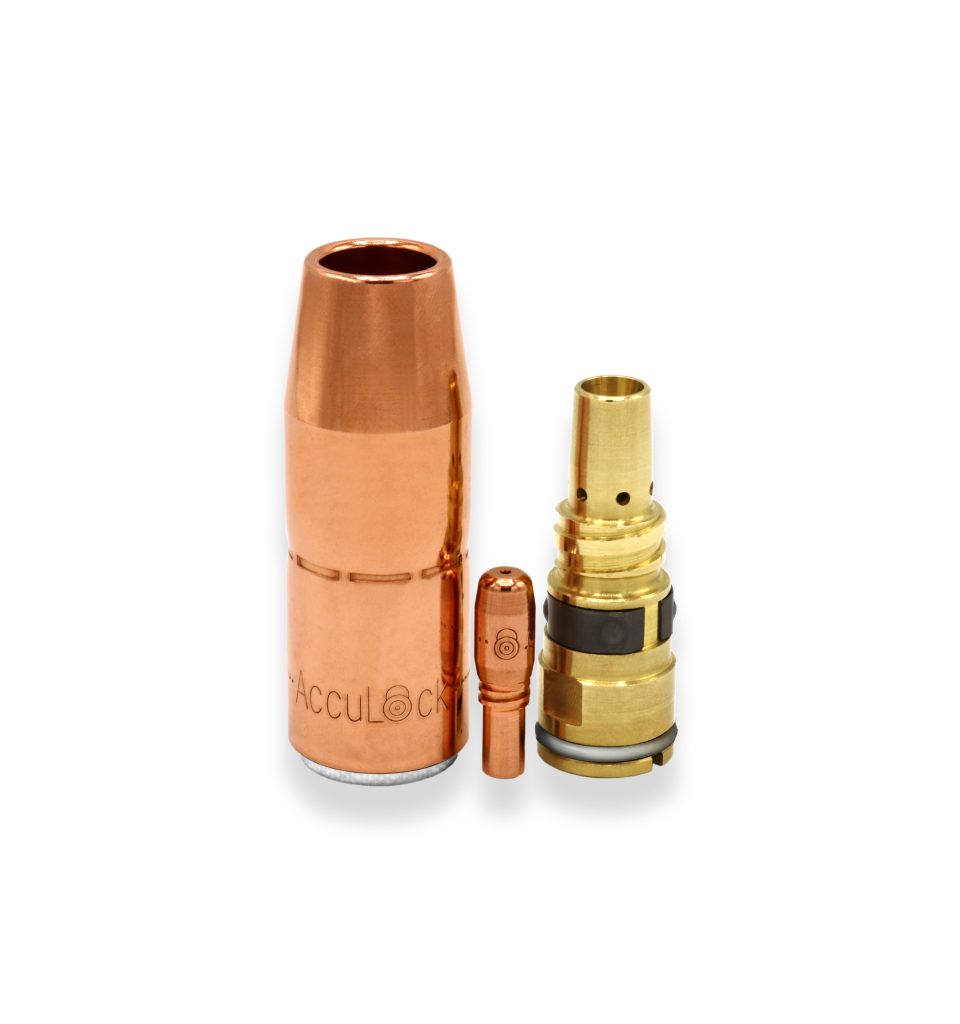

Recommended: AccuLock™ S
Also compatible: Centerfire™ · Quik Tip™ · TOUGH LOCK®
Limited: TOUGH ACCESS™
Not compatible: AccuLock™ R
Applies to S-Gun™ MIG guns. See spec sheet for part numbers and details.

Accessories

Sold separately. Refer to the spec sheet for part numbers and details.

Flex Neck
Jump Liners
Neck Grips
Q-Neck Coupler
Gun Hanger
Heat Shield

Configurator

Build Your Gun
Use the Configurator to build your custom gun by walking through the selection process. Choose the options you need for your application and generate the right part number.

S40  15  M  E  4  D  M  A   →   S4015ME4DMA
 │    │  │  │  │  │  │  └─ Liner
 │    │  │  │  │  │  └──── Power pin
 │    │  │  │  │  └─────── Wire size
 │    │  │  │  └────────── Consumables
 │    │  │  └───────────── Neck
 │    │  └──────────────── Handle / trigger
 │    └─────────────────── Length (ft)
 └──────────────────────── Amperage

Amperage (steel monocoil cable)

S20	S30	S40
250 A	300 A	400 A
≤ 1/16″	≤ 5/64″	≤ 5/64″

Length

15	20	25
4.6 m	6.1 m	7.6 m

Handle / Trigger (all fit S20, S30, S40)

Handle	Standard	Locking
T Series Straight	M	N
O Series Small Curved	T	—

Neck

	Short 45°	Short 60°	Med 45°	Med 60°	Long 45°	Long 60°
Rotatable	B	C	E	F	H	I
Fixed	O	P	R	S	U	V

Consumables

4	9
AccuLock™ S (front-load liner)	AccuLock™ S (rear-load liner)

Wire Size

Steel	B	C	D	E	H	I	K
in	.030	.035	.039	.045	.052	1/16	5/64
mm	0.8	0.9	1.0	1.2	1.4	1.6	2.0

Aluminum	Q	R	S
in	.035	3/64	1/16
mm	0.9	1.2	1.6

Power Pin

E	L	M	S
Euro	Lincoln	Miller	Tweco #4 (Lincoln lead)

Liner

A	C
Front load	Rear load

Compatibility rules

Consumables 4 → front-load liner A only
Consumables 9 → rear-load liner C
Euro pin E → not compatible with liner A (use C)
S20 → wire up to 1/16″ only (no K)

Most common part numbers

S4015TE5EMC S-Gun 400 A, 15′, O Series curved handle, rotatable medium 45° neck, AccuLock™ S, 0.045″ wire, Miller® pin, rear-load liner S2515TE5EM S-Gun 250 A, 15′, O Series curved handle, rotatable medium 45° neck, AccuLock™ S, 0.045″ wire, Miller® pin S3015TE5HMC S-Gun 300 A, 15′, O Series curved handle, rotatable medium 45° neck, AccuLock™ S, 0.052″ wire, Miller® pin, rear-load liner S3015TE8EMC S-Gun 300 A, 15′, O Series curved handle, rotatable medium 45° neck, Centerfire™, 0.045″ wire, Miller® pin, rear-load liner S4015TE5IMC S-Gun 400 A, 15′, O Series curved handle, rotatable medium 45° neck, AccuLock™ S, 1/16″ wire, Miller® pin, rear-load liner
