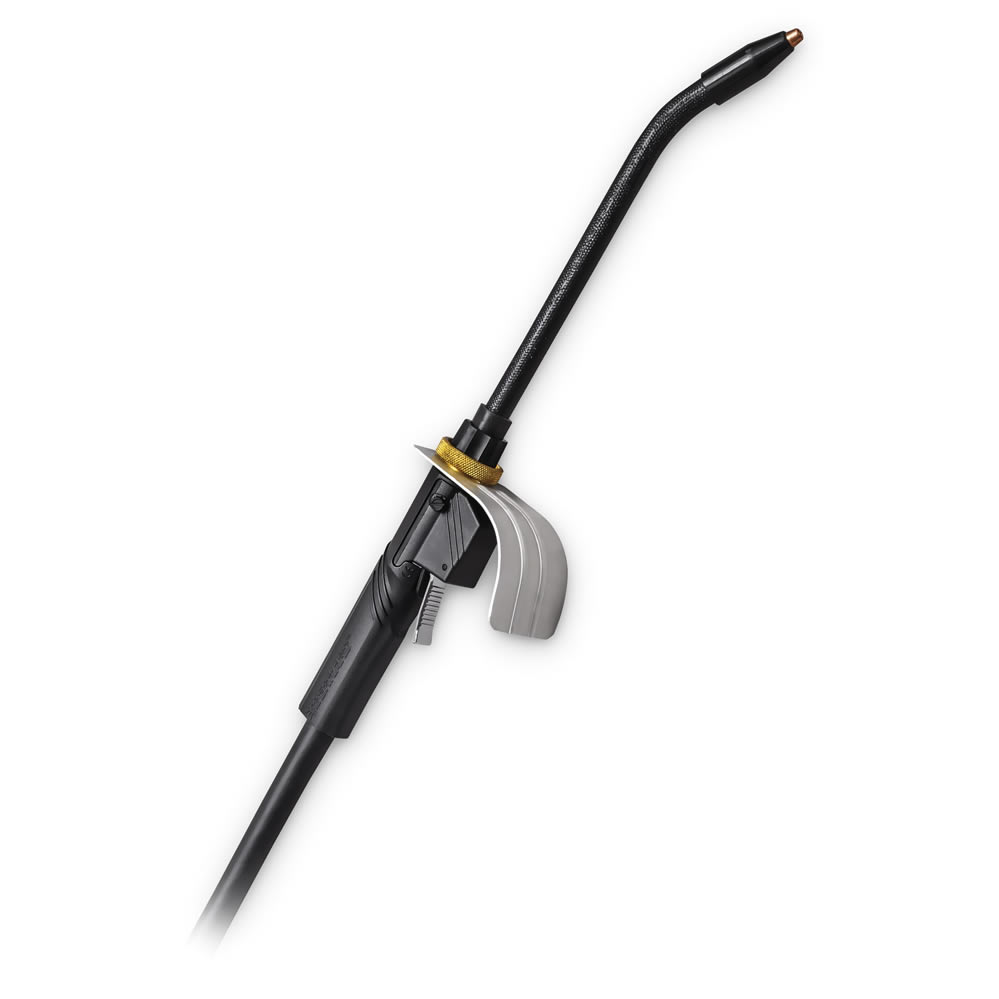

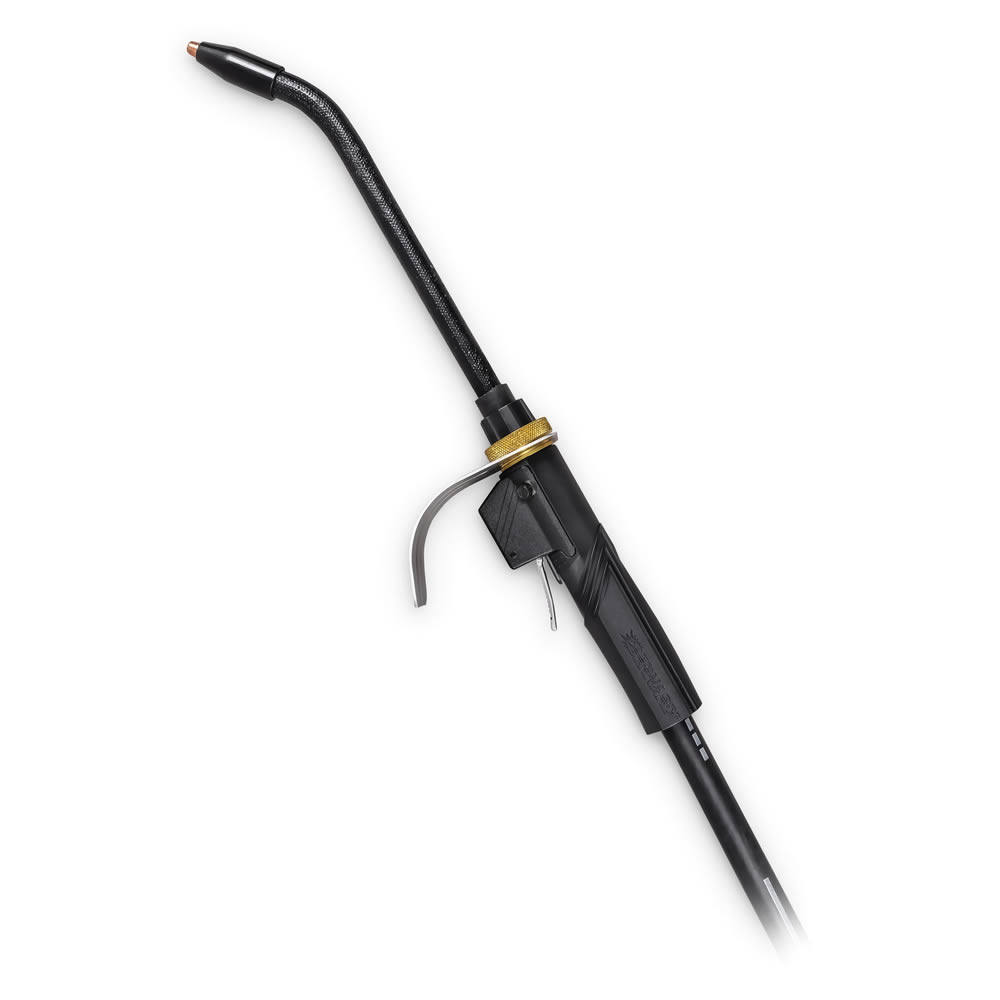

IronPro™ Self-Shielded FCAW Gun

Built tough for harsh jobsites, the Bernard® IronPro™ self-shielded FCAW gun reaches hard-to-access joints with ease, while AccuLock™ consumables and a sealed trigger mean fewer tip changes and less downtime.

350-450 AMPS

AIR-COOLED

DUTY-CYCLE 60%

ACCULOCK™ S CONSUMABLES

FCAW

1 HANDLE STYLE

View product documentation Request more info

Built For Harsh Environments
Excellent Joint Access and Maneuverability
Easy Maintenance

Overview

The Bernard IronPro is a self-shielded flux-cored welding gun built for tough jobs in harsh environments. Available in 350 and 450 amp models with 10 or 15 ft cables, it’s designed to hold up to rough use while keeping welders comfortable and productive. AccuLock™ S contact tips extend consumable life, which means fewer tip changes, less troubleshooting and more time welding, even in tight positions.

Specifications

Amperage Rating	350 Amp, 450 Amp 60% Duty-Cycle with Mixed Gases
Cooling	Air Cooled
Wire Size Range	1/16″–3/32″ (1.6–2.4 mm)
Cable Lengths	10 ft, 15 ft
Consumable System	Acculock S
Handle Styles	Small Straight T Series Handle

Gun Part Numbers

To order an IronPro™ Self-Shielded Flux-Cored MIG gun, please select from one of the available part numbers below.

350A 10′ Cable	350A 15′ Cable	450A 15′ Cable
GL3510MLNM	GL3515MLNM	GL4515MLNM
GL3510MLNT	GL3515MLNT	GL4515MLNT
GL3510MSXE	GL3515MSXE	GL4515MSXM
GL3510MSXM	GL3515MSXM	GL4015MSXT
GL3510MSXT	GL3515MSXT

Below is a part number reference chart for the available IronPro™ gun numbers listed above. Please use this reference to determine which part number from the previous chart is best suited for your welding needs. For example, any IronPro™ with a short neck option (S), will automatically have a heat shield included on the build (X). Any IronPro™ built with a long neck option (L), will not have a heat shield installed (N).

Style	Amp	Length	Handle and Trigger Option	Neck Length	Heat Shield	Power Pin
GL Gasless Liner	35 350 Amp 45 450 Amp	10 10′ (3.05 m) 15 15′ (4.57 m)	M T-Series Trigger	L 12″ (45° neck) S 7″ (60° neck)	N Not Installed X Installed	M Miller® T Tweco® #4 E Euro

Consumables

Compatible: AccuLock™ S
Not compatible: AccuLock™ R · Centerfire™ · Quik Tip™ · TOUGH LOCK® · TOUGH ACCESS™
Applies to IronPro™ self-shielded FCAW guns. See spec sheet for part numbers and details.

Accessories

Sold separately. Refer to the spec sheet for part numbers and details.

Heat Shield

Part Numbering

GL  35  15  M  L  N  M   →   GL3515MLNM
 │   │   │  │  │  │  └─ Power pin
 │   │   │  │  │  └──── Heat shield
 │   │   │  │  └─────── Neck
 │   │   │  └────────── Handle / trigger
 │   │   └───────────── Length (ft)
 │   └───────────────── Amperage
 └───────────────────── Style

Style

GL
Gasless liner

Amperage

35	45
350 A	450 A

Length

10	15
10 ft (3.05 m)	15 ft (4.57 m)

Handle / Trigger

M
T-Series trigger

Neck

L	S
12″ long, 45°	7″ short, 60°

Heat Shield

N	X
Not installed	Installed

Power Pin

M	T	E	Z
Miller®	Tweco® #4	Euro	Lincoln® (LN-25® models)

Available part numbers

Neck / Heat Shield	Power Pin	350 A, 10 ft	350 A, 15 ft	450 A, 15 ft
Long 45°, no shield (LN)	Miller (M)	GL3510MLNM	GL3515MLNM	GL4515MLNM
	Tweco #4 (T)	GL3510MLNT	GL3515MLNT	GL4515MLNT
	Lincoln (Z)	GL3510MLNZ	GL3515MLNZ	—
Short 60°, shield (SX)	Miller (M)	GL3510MSXM	GL3515MSXM	GL4515MSXM
	Tweco #4 (T)	GL3510MSXT	GL3515MSXT	GL4515MSXT
	Lincoln (Z)	GL3510MSXZ	GL3515MSXZ	—
	Euro (E)	GL3510MSXE	GL3515MSXE	—
