MA1 Fixed Automatic MIG Guns

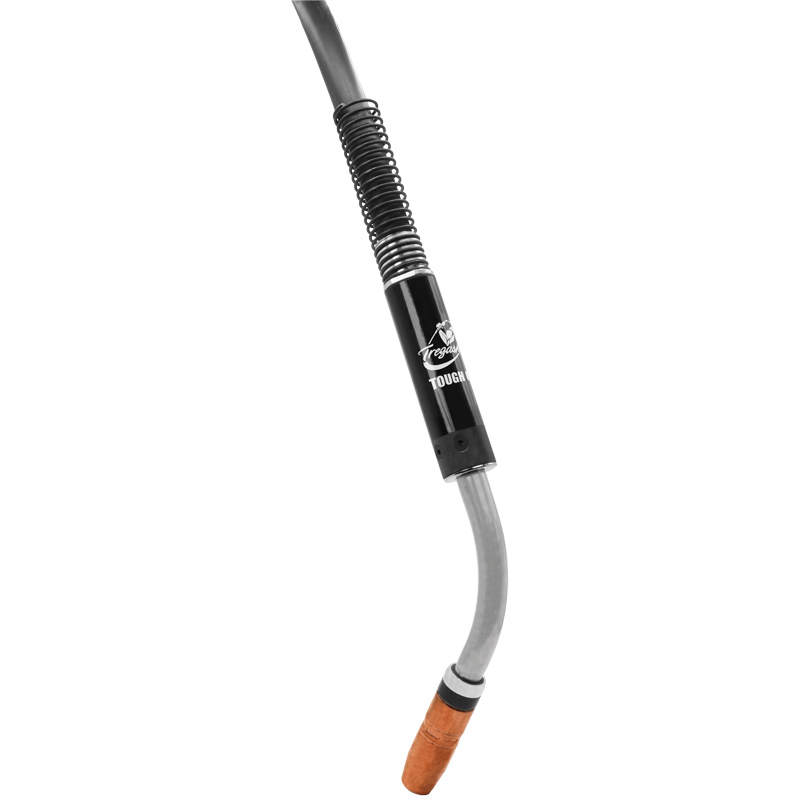

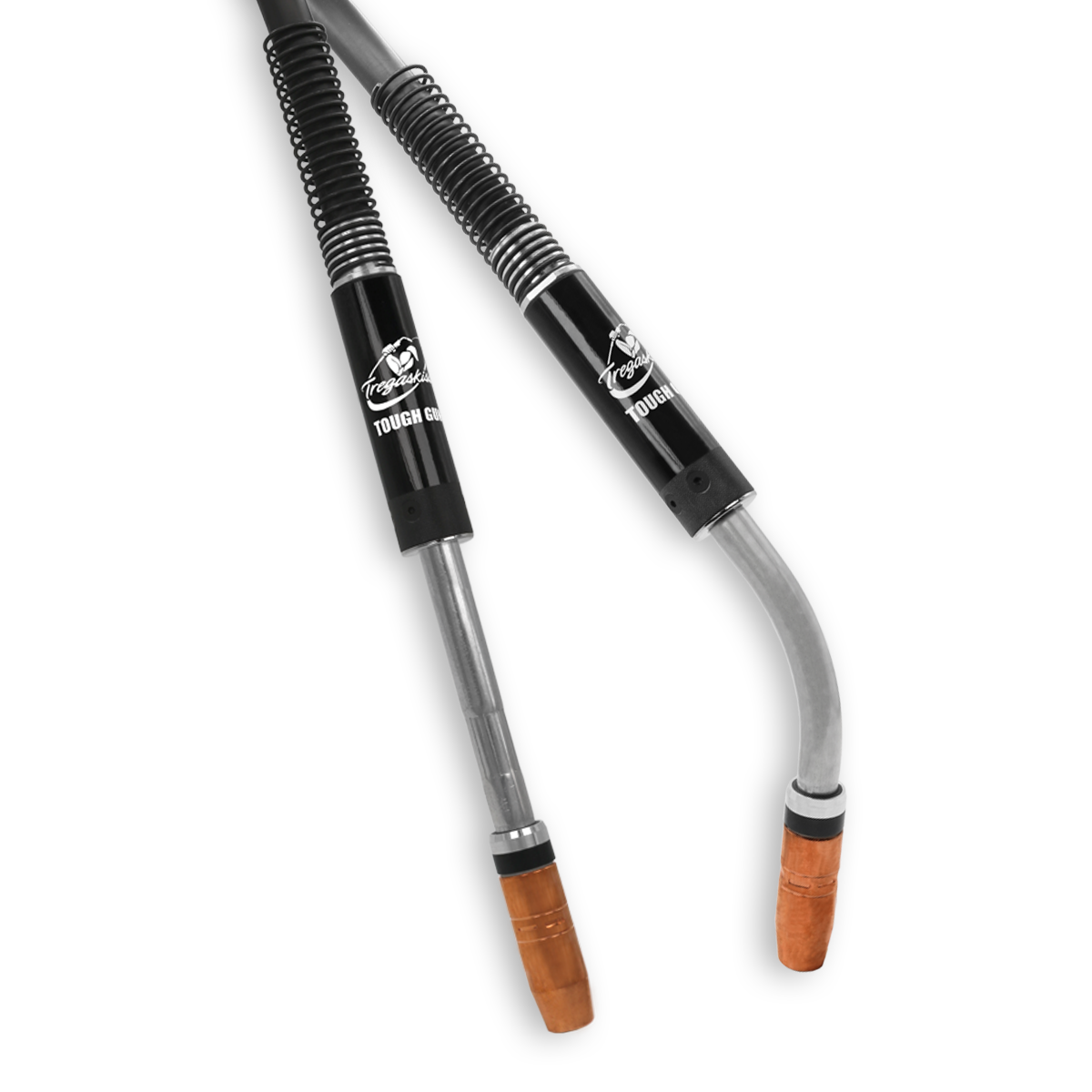

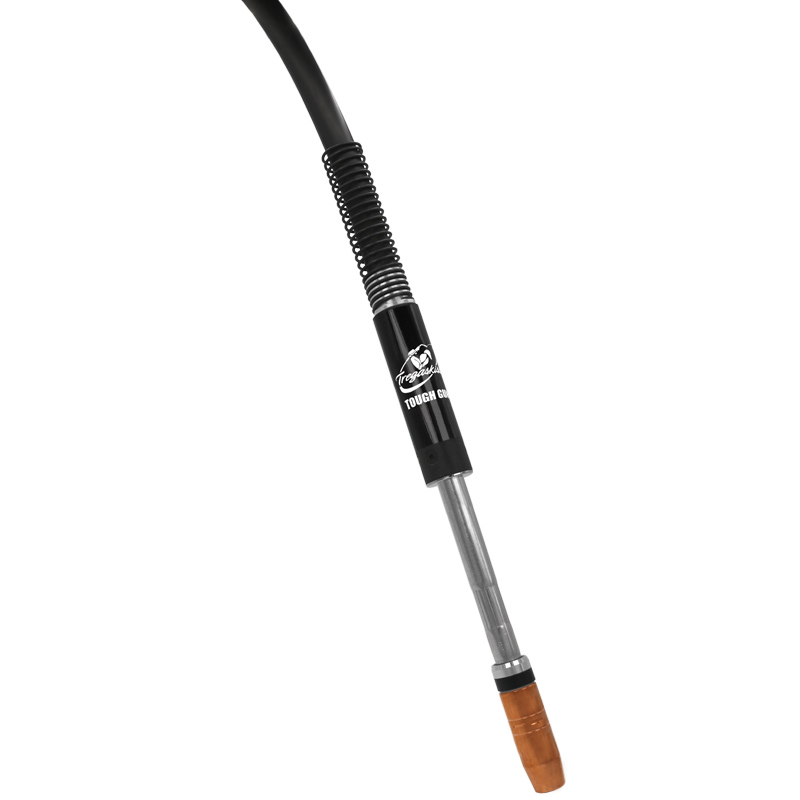

MA1 fixed automatic MIG gun delivers durable, repeatable 385-amp performance for hard automation, cutting the downtime and rework that comes with creating another solution.
- Built for hard automation
- Longer tip life, less downtime
- Simple and configurable
Overview
MA1 is designed to keep maintenance simple and costs low, with minimal replacement parts and an easy-to-service design. AccuLock™ R consumables eliminate cross-threading and extend tip life, and in most cases can replace your current tip and diffuser with no impact to Tool Center Point. QUICK LOAD® liners load from the front in less than half the time of rear-load liners. Configure the gun with cable lengths from 3′ to 15′, a range of neck lengths and angles, and power pins for most major wire feeders, or add I.C.E.™ technology to circulate water at the nozzle for cooler-running, longer-lasting consumables.
Specifications
| Amperage Rating | 385 Amps 100% Duty-Cycle with C02 and Mixed Gases |
|---|---|
| Compliance | Ratings based on tests that comply with IEC 60974-7 standards. |
| Cooling | Air-Cooled (I.C.E.™ optional) |
| Wire Size Range | Wire size: 0.030″–3/32″ (0.8–2.4 mm) Aluminum: 0.035″–1/16″ (0.9–1.6 mm) |
| Cable Lengths | 3 ft - 15 ft *Contact Customer Service for Lengths up to 25 ft |
| Consumable System | AccuLock R |
| Torch Style | Fixed automatic |
Consumables
Recommended: AccuLock™ R
Also compatible: TOUGH LOCK®
Liners: QUICK LOAD® front-load liners come standard; aluminum setups use rear-load liners with a jump liner.
See spec sheet for nozzle, contact tip, and liner part numbers.
Accessories
Sold separately. Refer to the spec sheet for part numbers and details.
Configurator
Configure your torch by walking through the selection process. Choose the options you need for your application, and the configurator will build the right torch configuration and generate the corresponding part number.
MA1 6 A 0 1 A B 0 C M → MA16A01AB0CM
│ │ │ │ │ │ │ │ │ └─ Power pin
│ │ │ │ │ │ │ │ └──── Wire size
│ │ │ │ │ │ │ └─────── Option #2
│ │ │ │ │ │ └────────── Nozzle
│ │ │ │ │ └───────────── Cable length
│ │ │ │ └──────────────── Diffuser & tip
│ │ │ └─────────────────── Option #1
│ │ └────────────────────── Neck
│ └───────────────────────── Gun style (6 = 385 A)
└───────────────────────────── SeriesNeck
| Length | 22° | 45° | 60° | 180° |
|---|---|---|---|---|
| Short | — | — | L (305-60) | — |
| Medium | A (405-22) | B (405-45) | C (405-60) | D (405-180) |
| Long | E (505-22) | F (505-45) | G (505-60) | H (505-180) |
| Extended | — | J (405-45LL) | K (405-60LL) | — |
| I.C.E.™ | M (591-22) | N (591-45) | P (591-60) | Q (591-180) |
Diffuser & Contact Tip
| 0 | 5 | 6 |
|---|---|---|
| No consumables | AccuLock™ (slip-on) | AccuLock™ (thread-on) |
Cable Length
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3′ | 3.5′ | 4′ | 4.5′ | 5′ | 5.5′ | 6′ | 6.5′ | 7′ | 7.5′ | 8′ | 8.5′ | 9′ | 9.5′ | 10′ | 12′ | 15′ |
Nozzle
| Code | Part | Bore | Tip position | Material | O.D. |
|---|---|---|---|---|---|
| A | 401-6-62 | 5/8″ | 1/8″ recess | Copper | 1.062″ |
| B | 401-5-62 | 5/8″ | 1/4″ recess | Copper | 1.062″ |
| E | 401-7-62 | 5/8″ | 1/4″ recess | Copper | 1.106″ |
| F | 401-7-75 | 3/4″ | 1/8″ recess | Brass | 1.106″ |
| J | 401-7-87 | 3/4″* | 1/8″ recess | Brass | 1.106″ |
| K | 401-30-62 | 5/8″ | 1/8″ stickout | Brass | 0.938″ |
| L | 401-30-62T | 5/8″ | 1/8″ stickout, thread-on | Brass | 0.938″ |
| 0 | No consumables |
Wire Size
| Steel | B | C | D | E | G | J | L | M |
|---|---|---|---|---|---|---|---|---|
| in | .030 | .035 | .040 | .045 | .052 | 1/16 | 5/64 | 3/32 |
| mm | 0.8 | 0.9 | 1.0 | 1.2 | 1.3 | 1.6 | 2.0 | 2.4 |
| Aluminum | R | U | W | T |
|---|---|---|---|---|
| in | .035 | .045 | .052 | 1/16 |
| mm | 0.9 | 1.2 | 1.3 | 1.6 |
Power Pin
| B | C | E | F | L | M | P | T | W |
|---|---|---|---|---|---|---|---|---|
| Bernard® | L-Tech® | Euro | Fronius® | Lincoln® | Miller® | Panasonic® | Tweco® #4 | Tweco® #5 |
Ordering rules
- No consumables: use 0 for diffuser & tip, nozzle, and wire size
- I.C.E.™ necks (M, N, P, Q) aren’t available without consumables
Most common part numbers
