E-Z Feed™ Liner Technology

Bernard® E-Z Feed™ liners combine a low-friction, corrosion-resistant coating with a reinforced coil profile for smoother wire feeding, longer liner life, and less downtime. Built tough to feed smooth.

CONSUMABLE

SEMI-AUTO & ROBOTIC GUNS

GMAW/MIG

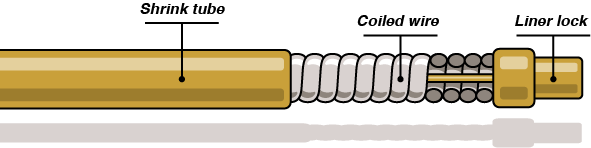

REINFORCED COIL

SMOOTHER FEEDING

GENUINE OEM

Request more info

Smoother, more consistent wire feeding
Resists kinking and collapse
Standard on Bernard MIG guns

Overview

Built tough to feed smooth.
Bernard® E-Z Feed™ liners combine reduced friction, reinforced rigidity, and broad compatibility in one liner. A corrosion-resistant coating creates a slick surface that lowers drag on the wire, reducing birdnesting, stubbing, and downtime, while consistent wire delivery gives you a steadier arc and more predictable weld quality, even on long runs. An enhanced coil profile reinforces rigidity to prevent collapse, kinking, and deformation in high-duty-cycle work, so the liner lasts longer and needs changing less often. E-Z Feed liners handle challenging wires like stainless steel and metal-cored without compromise, which simplifies inventory by reducing the number of liner types you need to stock. They’re now standard on Bernard® MIG guns, including BTB, S-Gun™, PipeWorx™, Clean Air E™, and W-Gun™, at no additional cost, and work with AccuLock™ S and R, Centerfire™, TOUGH LOCK®, and Quik Tip™ consumables.

Specifications

Compatible guns	BTB, S-Gun™, PipeWorx™, Clean Air E™, and W-Gun™ (rear load); BTB, S-Gun™, and Clean Air E™ with AccuLock™ S (front load); Tregaskiss® Atlas™, TA3, and CA3 (QUICK LOAD)
Compatible consumables	AccuLock™ S and R, Centerfire™, TOUGH LOCK®, Quik Tip™
Wire sizes	0.035″–1/16″ (0.9–1.6 mm)
Wire types	Solid, stainless steel, metal-cored
Liner styles	Rear load, front load (AccuLock™ S), and QUICK LOAD® front load
Lengths	6′ (QUICK LOAD); 10′, 15′, 20′, 25′ (front load); 15′ and 25′ (rear load)
Coating	Corrosion-resistant

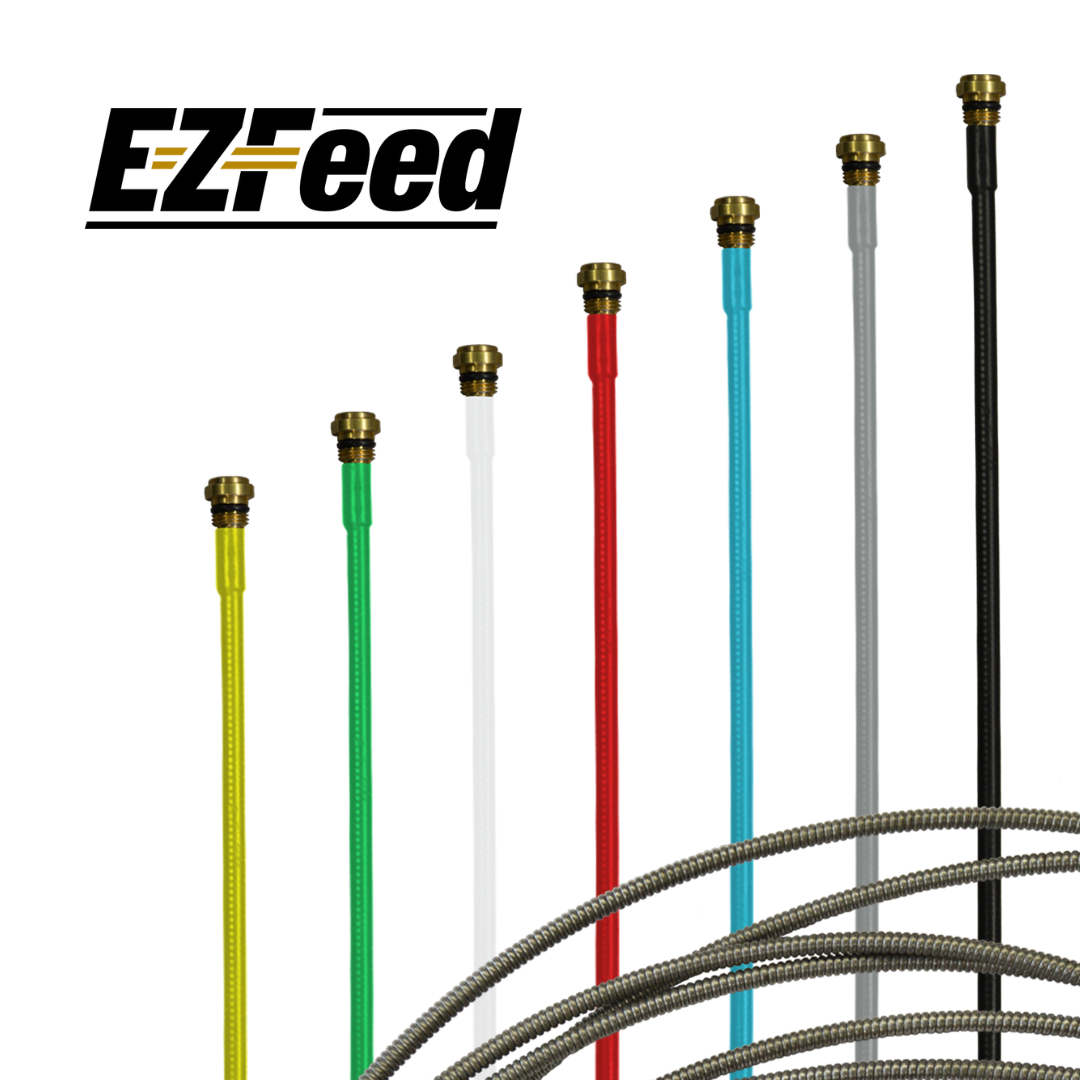

Size identification	Color-coded shrink wrap

Consumables

E-Z Feed™ Rear Load Liners

E-Z Feed rear load liners are now standard on Bernard® MIG guns. Effective September 29, 2025, BTB, S-Gun™, PipeWorx™, Clean Air E™, and W-Gun™ MIG guns come with E-Z Feed rear load liners standard for 0.035″–1/16″ (0.9–1.6 mm) wire. Standard rear load liners are still available, but we recommend E-Z Feed liners for maximum gun performance.

Part Number	Color	Wire Size	Gun Length	Replaces
LD3A-15	White	0.035″–0.045″ (0.9–1.2 mm)	10′–15′ (3.05–4.57 m)	L3A-15
LD3A-25	White	0.035″–0.045″ (0.9–1.2 mm)	20′–25′ (6.10–7.62 m)	L3A-25

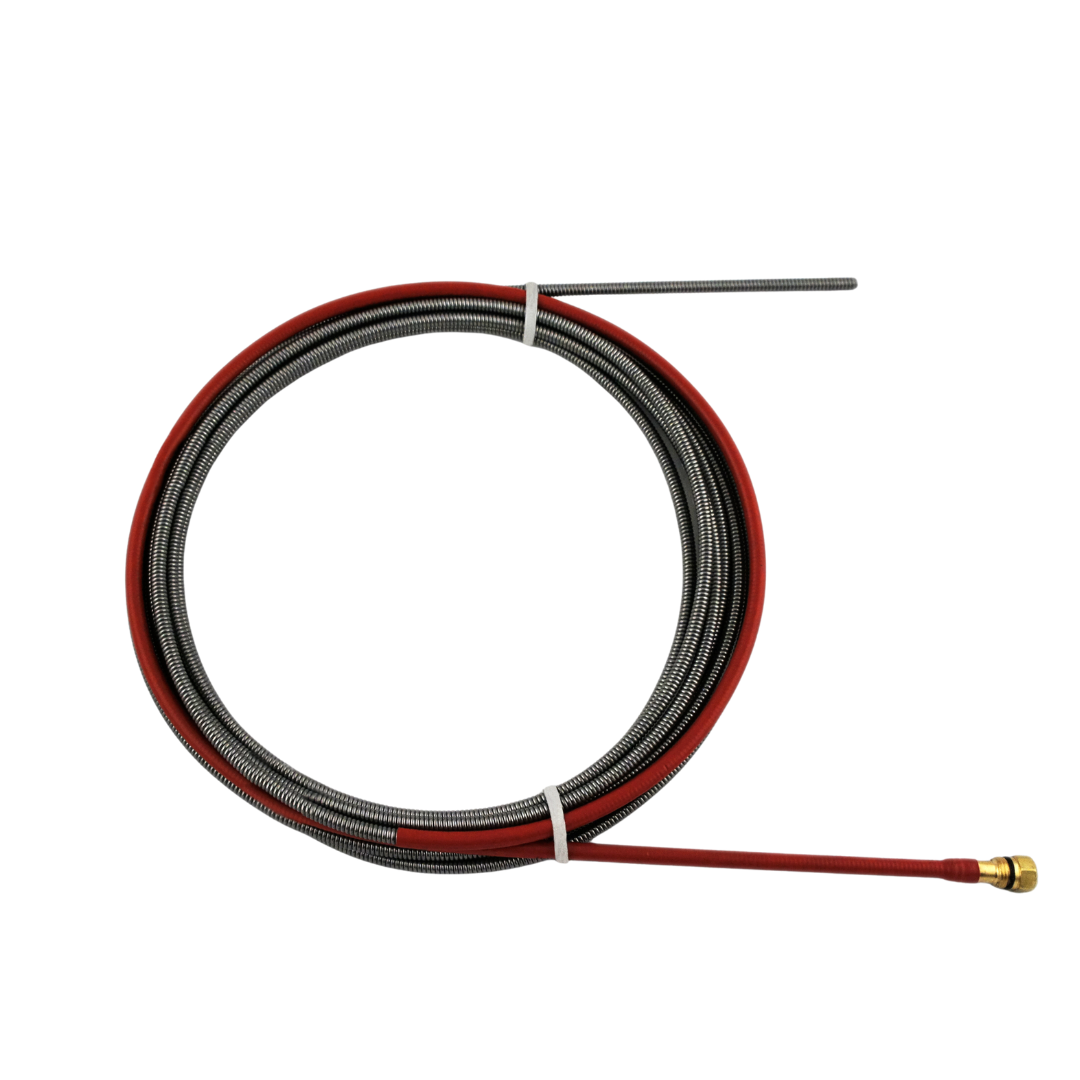

LD4A-15	Red	0.045″–1/16″ (1.2–1.6 mm)	10′–15′ (3.05–4.57 m)	L4A-15
LD4A-25	Red	0.045″–1/16″ (1.2–1.6 mm)	20′–25′ (6.10–7.62 m)	L4A-25

E-Z Feed™ Front Load Liners (AccuLock™ S)

E-Z Feed front load liners come standard in BTB, S-Gun™, and Clean Air E™ MIG guns for 0.035″–1/16″ (0.9–1.6 mm) wire with AccuLock™ S consumables, when the front load liner option is selected. Along with all the benefits of E-Z Feed technology, these liners lock and concentrically align to both the contact tip and power pin for a flawless wire-feed path.

Error-proof trimming: no measuring required
Color matching: match the power pin cap washer to the liner shrink wrap to prevent errors
Locked at both ends: aligned at the front and back of the gun for a flawless wire-feed path

Part Number	Color	Wire Size	Gun Length	Use with AccuLock S Diffuser
LAD3A-10	White	0.035″–0.045″ (0.9–1.2 mm)	10′ (3.05 m)	D-A1, D-A2, DS-A1, DS-A2
LAD3A-15	White	0.035″–0.045″ (0.9–1.2 mm)	15′ (4.57 m)	D-A1, D-A2, DS-A1, DS-A2
LAD3A-20	White	0.035″–0.045″ (0.9–1.2 mm)	20′ (6.10 m)	D-A1, D-A2, DS-A1, DS-A2
LAD3A-25	White	0.035″–0.045″ (0.9–1.2 mm)	25′ (7.62 m)	D-A1, D-A2, DS-A1, DS-A2
LAD4A-10	Red	0.045″–1/16″ (1.2–1.6 mm)	10′ (3.05 m)	D-A1, D-A2, DS-A1, DS-A2
LAD4A-15	Red	0.045″–1/16″ (1.2–1.6 mm)	15′ (4.57 m)	D-A1, D-A2, DS-A1, DS-A2
LAD4A-20	Red	0.045″–1/16″ (1.2–1.6 mm)	20′ (6.10 m)	D-A1, D-A2, DS-A1, DS-A2
LAD4A-25	Red	0.045″–1/16″ (1.2–1.6 mm)	25′ (7.62 m)	D-A1, D-A2, DS-A1, DS-A2

QUICK LOAD® E-Z Feed™ Liners (Tregaskiss® robotic torches)

QUICK LOAD E-Z Feed liners load from the front of the torch and take less than half the time and effort to replace compared with rear load liners. They come standard on Tregaskiss® Atlas™, TA3, and CA3 robotic torches configured for 0.035″–1/16″ (0.9–1.6 mm) wire, unless wire brake is selected, in which case the torch comes with rear load liners. Available in lengths up to 6′ (1.8 m) for robotic applications.
