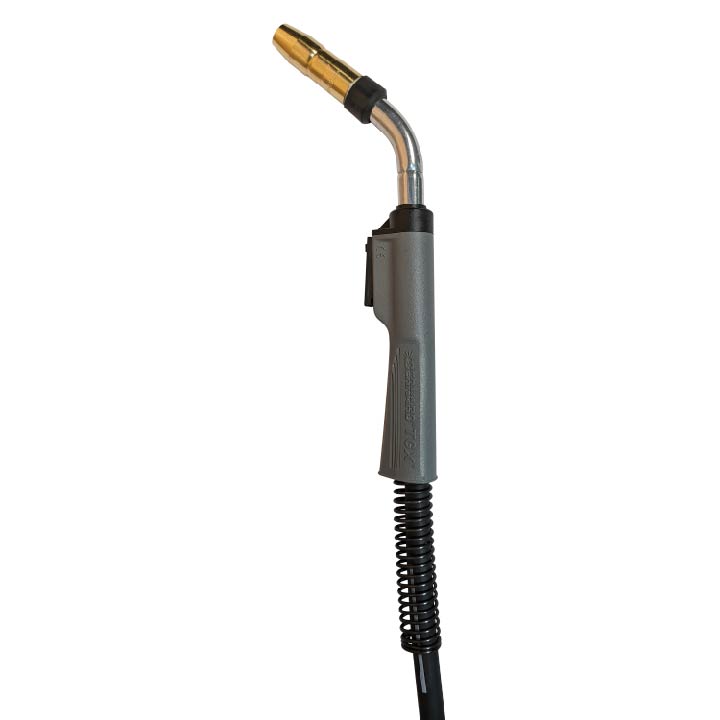

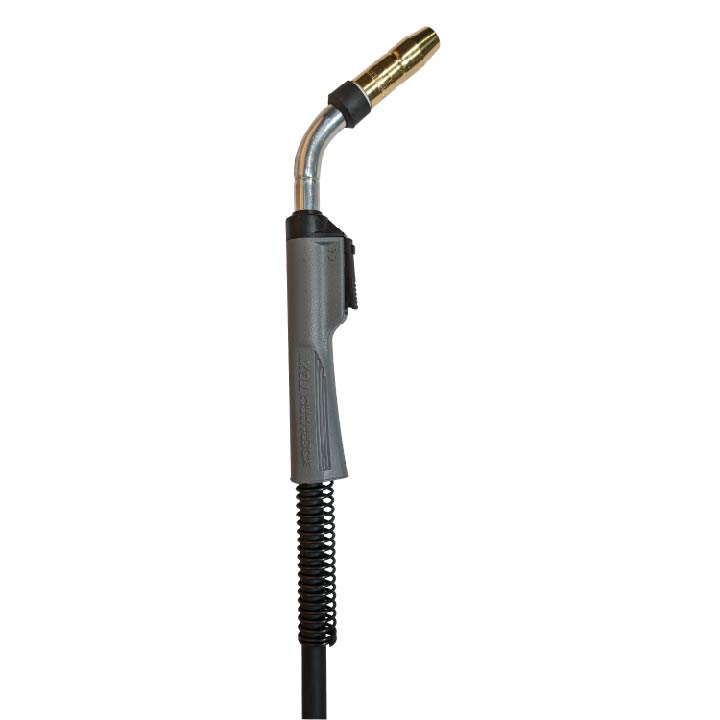

TGX XS series semi-automatic air-cooled MIG gun

TGX XL series semi-automatic air-cooled MIG gun

TGX MIG Guns

The Bernard TGX MIG Gun is a lightweight, dependable solution for light-duty welding applications. Designed for comfort and easy maneuverability, it helps welders stay productive throughout the job.

180 - 260 AMP

AIR-COOLED

60% MIXED GASES

ACCULOCK™ S CONSUMABLES

GMAW/MIG

1 HANDLE STYLE

View product documentation Request more info Build your part number

Light Weight & Maneuverable
Durable Handle
Long Lasting Acculock S Consumables

Overview

The Bernard TGX MIG Gun is designed for light-duty welding applications where comfort, maneuverability and dependable performance matter. Its lightweight design helps reduce fatigue while providing the reliable performance welders need for everyday welding.

Specifications

Specs

Amperage rating	180 A or 260 A at 60% duty cycle
Cooling	Air-cooled
Process	MIG (GMAW) welding
Cable lengths	10 ft, 15 ft
Handle style	Compact XS handle
Gas	Mixed gases

Part Number Options

Amperage	10 ft Length	15 ft Length
180 amp (XS)	XS1810	XS1815
260 amp (XS)	XS2610	XS2615

Consumables

Recommended: AccuLock™ S
Also compatible: Centerfire™ · Quik Tip™ · TOUGH LOCK®
Limited: TOUGH ACCESS™
Not compatible: AccuLock™ R
Applies to TGX™ MIG guns manufactured after March 1, 2024. See spec sheet for part numbers and details.

Configurator

Open the configurator Reverse lookup my part number

Build Your Gun
Use the Configurator to build your custom gun by walking through the selection process. Choose the options you need for your application and generate the right part number.

M XS18 15 -35 → MXS1815-35
│ │ │ └─ Wire size
│ │ └────── Cable length (ft)
│ └──────────── Amperage
└──────────────── Power pin

Power Pin

M	LN	?
Miller®	Lincoln®	Tweco® #4

Amperage

XS18	XS26
180 A	260 A

Cable Length

10	15
10′ (3.05 m)	15′ (4.57 m)

Wire Size

-30	-35	-45
0.030″ (0.8 mm)	0.035″ (0.9 mm)	0.045″ (1.2 mm)
180 A only	Both	260 A only

Step 1: Chassis (XS + amperage + cable length)

XS  18  15   →   XS1815
     │   └─ Cable length (ft)
     └───── Amperage (18 = 180 A, 26 = 260 A)

Model	Amperage	Cable
XS1810	180 A	10′
XS1815	180 A	15′
XS2610	260 A	10′
XS2615	260 A	15′

Step 2: Power Pin

	Miller®	Lincoln®	Tweco® #4
Power pin	2200137 (incl. O-rings)	214-2-1	214 (incl. O-rings)
Connector	419-4 Amphenol plug	419-4 Amphenol plug	419-8 Hard wire connector
Extras	214-116 Feeder tip (0.023″–1/16″ wire)	GLM1 External gas line	—

Step 3: Wire Size / Front-End

	180 A	260 A
Diffuser	DS-A1-C	DS-A1-C
Nozzle	NS-A1218B	NS-A1218B
Contact tip	See tip chart	See tip chart
Neck insulator	4623R	4623R
Neck	205-60	205-60
Liner	L2A-15 (0.030″–0.035″)	L3B-15 (0.035″–0.045″)
