I.C.E. Technology

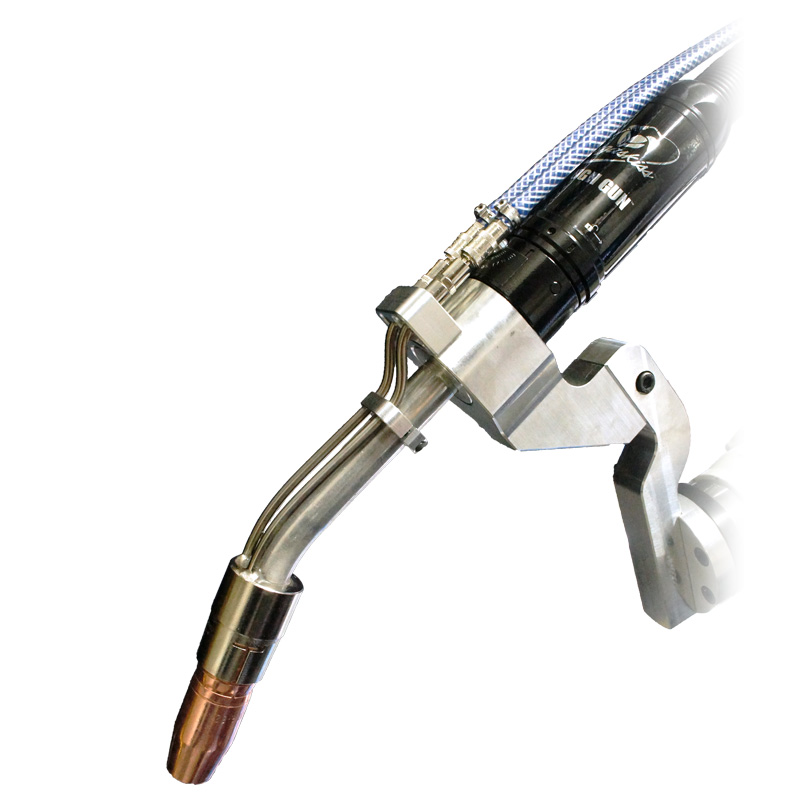

Tregaskiss® I.C.E.™ (Integrated Cooling Enhancer adds water cooling at the nozzle to air-cooled robotic torches to keep consumables lasting longer.
- Cooler-running consumables last longer
- Nozzle cools to 122°F in 90 seconds
- All water components external
- Water isolated from power leads
Overview
Tregaskiss® I.C.E.™ (Integrated Cooling Enhancer) technology boosts the duty cycle of robust air-cooled robotic and automatic MIG torches by adding water cooling where it matters most: at the nozzle. Circulating water keeps front-end consumables running cooler and lasting longer, while the strong neck won’t bend like a traditional water-cooled neck. If water cooling is ever lost, the torch keeps running as an air-cooled product. Maintenance stays simple, with an air-cooled unicable that runs independently of the water lines, all water-cooling components mounted externally, and shut-off valves at the I.C.E. connections. It’s safer too: water stays isolated from the power leads so it never becomes electrically charged, the neck stays below 122°F (50°C) while welding, and the nozzle cools to 122°F (50°C) within 90 seconds of welding.* Available for MA1 and Auto Head fixed automatic torches and CA3 and select TA3 robotic torches, and existing CA3 torches can be upgraded.
*Results based on 500 A at 100% duty cycle with 80/20 Ar/CO₂.
Specifications
| Compatible torches | Tregaskiss® CA3, TA3 (select FANUC® and ABB® models), MA1, and Auto Head |
|---|---|
| Cooling | Hybrid: air-cooled torch with water cooling at the nozzle |
| Neck temperature | Never exceeds 122°F (50°C) while welding* |
| Nozzle cool-down | 122°F (50°C) within 90 seconds after welding* |
| Neck angles | 22°, 45°, 180°; custom angles and torch lengths available |
| Nozzle O.D. options | 0.938″, 1.062″, 1.106″ |
| Consumable system | TOUGH LOCK® or AccuLock™ R |
| Reamer compatibility | TT4A reamer |
| Upgradeable | Existing CA3 torches can be upgraded with I.C.E. technology |
Consumables
TOUGH LOCK® Heavy Duty (HD) Contact Tips
| Part Number | Description |
|---|---|
| 403-20-30 | for 0.030″ wire |
| 403-20-35 | for 0.035″ wire |
| 403-20-1.0 | for 1.0 mm wire |
| 403-20-45 | for 0.045″ wire |
| 403-20-364 | for 3/64″ wire |
| 403-20-52 | for 0.052″ wire |
| 403-20-1.4 | for 1.4 mm wire |
| 403-20-116 | for 1/16″ wire |
| 403-20-564 | for 5/64″ wire |
| 403-20-332 | for 3/32″ wire |
TOUGH LOCK Heavy Duty (HD) Tapered Contact Tips
| Part Number | Description |
|---|---|
| 403-21-30 | for 0.030″ wire |
| 403-21-35 | for 0.035″ wire |
| 403-21-1.0 | for 1.0 mm wire |
| 403-21-45 | for 0.045″ wire |
| 403-21-52 | for 0.052″ wire |
| 403-21-116 | for 1/16″ wire |
TOUGH LOCK Extended Life Heavy Duty (EHD) Contact Tips
| Part Number | Description |
|---|---|
| 403-27-30 | for 0.030″ wire |
| 403-27-35 | for 0.035″ wire |
| 403-27-1.0 | for 1.0 mm wire |
| 403-27-45 | for 0.045″ wire |
| 403-27-364 | for 3/64″ wire |
| 403-27-52 | for 0.052″ wire |
| Part Number | Description |
|---|---|
| 404-32 | TOUGH LOCK® retaining head, slip-on |
| 404-52 | TOUGH LOCK retaining head, thread-on |
| D-ATSH | AccuLock™ R diffuser, slip-on |
| D-ATTH | AccuLock R diffuser, thread-on |
NOTE: The TOUGH GUN I.C.E. Neck assembly must match the outside diameter (O.D.) of the nozzle (Example: 590-22-1.062 is designed for a nozzle with an O.D. of 1.062″)
| Part Number | Description |
|---|---|
| 401-6-62 | HD – 5/8″ bore, 1/8″ tip recess (copper), 1.062″ nozzle outside diameter |
| 401-81-62 | HD – 5/8″ bore, 1/8″ stick out (copper), 1.062″ nozzle outside diameter |
| 401-4-62 | SD – 5/8″ bore, 1/8″ tip recess (copper), 0.938″ nozzle outside diameter |
| 401-8-62 | SD – 5/8″ bore, 1/8″ stick out (copper), 0.938″ nozzle outside diameter |
| 401-52-50 | Bottleneck – 1/2″ bore, 1/4″ stick out (brass), 0.938″ nozzle outside diameter |
| 401-44-50 | Bottleneck – 1/2″ bore, 1/4″ stick out (copper), 0.938″ nozzle outside diameter |
| 401-48-50 | Bottleneck – 1/2″ bore, 1/8″ stick out (brass), 0.938″ nozzle outside diameter |
| 401-48-50C | Bottleneck – 1/2″ bore, 1/8″ stick out (copper), 0.938″ nozzle outside diameter |
| 401-48-62 | Bottleneck – 5/8″ bore, flush tip (copper), 0.938″ nozzle outside diameter |
| 401-42-50C | Bottleneck – 1/2″ bore, 1/8″ tip recess (copper), 0.938″ nozzle outside diameter |
| 401-49-50 | Bottleneck – 1/2″ bore, flush tip (brass), 0.938″ nozzle outside diameter |
| 401-71-62 | HD – 5/8″ bore, 1/8″ tip recess (brass, straight bore), 1.106″ nozzle outside diameter |
| 401-87-62 | HD – 5/8″ bore, 1/8″ stick out (brass), 1.062″ nozzle outside diameter |
Part Numbers
Spare Parts and Components
I.C.E. Neck Assemblies
| Part Number | Description |
|---|---|
| 590-22-0.938 | 22 degree neck, 0.938″ nozzle outside diameter |
| 590-22-1.062 | 22 degree neck, 1.062″ nozzle outside diameter |
| 590-22-1.106 | 22 degree neck, 1.106″ nozzle outside diameter |
| 590-45-0.938 | 45 degree neck, 0.938″ nozzle outside diameter |
| 590-45-1.062 | 45 degree neck, 1.062″ nozzle outside diameter |
| 590-45-1.106 | 45 degree neck, 1.106″ nozzle outside diameter |
| 590-180-0.938 | 180 degree neck, 0.938″ nozzle outside diameter |
| 590-180-1.062 | 180 degree neck, 1.062″ nozzle outside diameter |
| 590-180-1.106 | 180 degree neck, 1.106″ nozzle outside diameter |
Leather Wraps
| Part Number | Description | |
|---|---|---|
| 590-3-4 | Leather wrap, 4′ cable length | |
| 590-3-4.5 | Leather wrap, 4.5′ cable length | |
| 590-3-5 | Leather wrap, 5′ cable length | |
| 590-3-6 | Leather wrap, 6′ cable length | |
| 590-3-8 | Leather wrap, 8′ cable length | |
| 590-3-10 | Leather wrap, 10′ cable length | |
| 590-3-12 | Leather wrap, 12′ cable length | |
| 590-3-15 | Leather wrap, 15′ cable length |
Water Line Components
| Part Number | Description |
|---|---|
| 590-4 | Water line assembly |
| 590-2 | Water line bracket kit |
