Tregaskiss TA3 MIG Guns

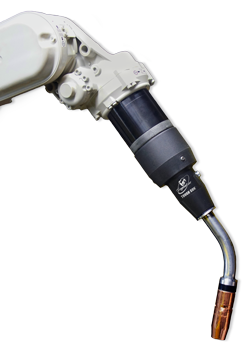

A 350 amp through-arm robotic MIG gun with a low-stress unicable built for precision and long cable life.

THRU-ARM

350 AMPS

DUTY CYCLE 100%

AIR-COOLED

ACCULOCK™ R CONSUMABLES

GMAW/MIG

View product documentation Request more info Build your part number

Less cable stress, longer life
Built for high volume
Configured your way

Overview

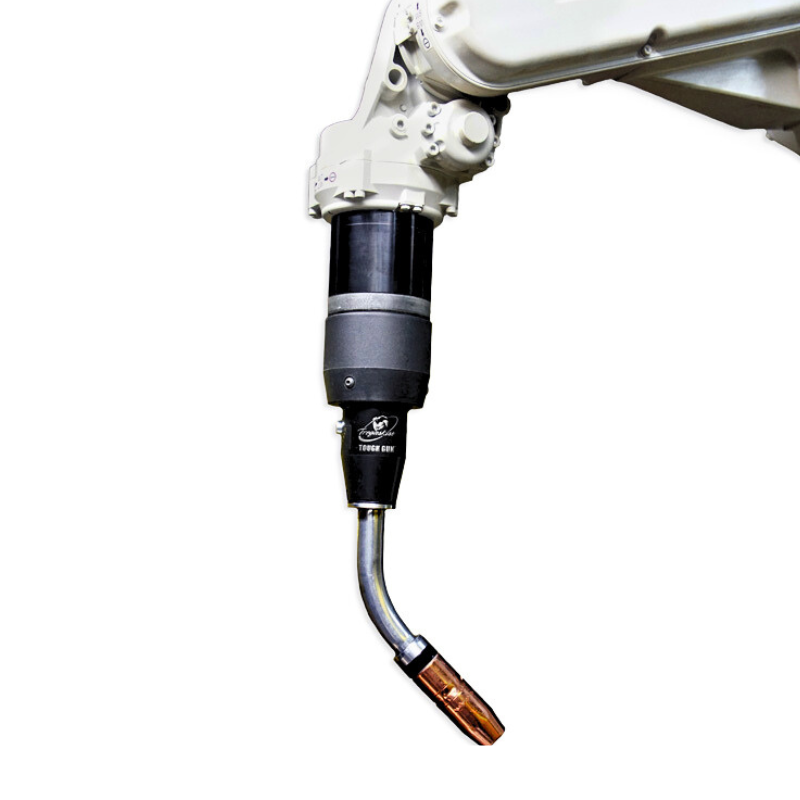

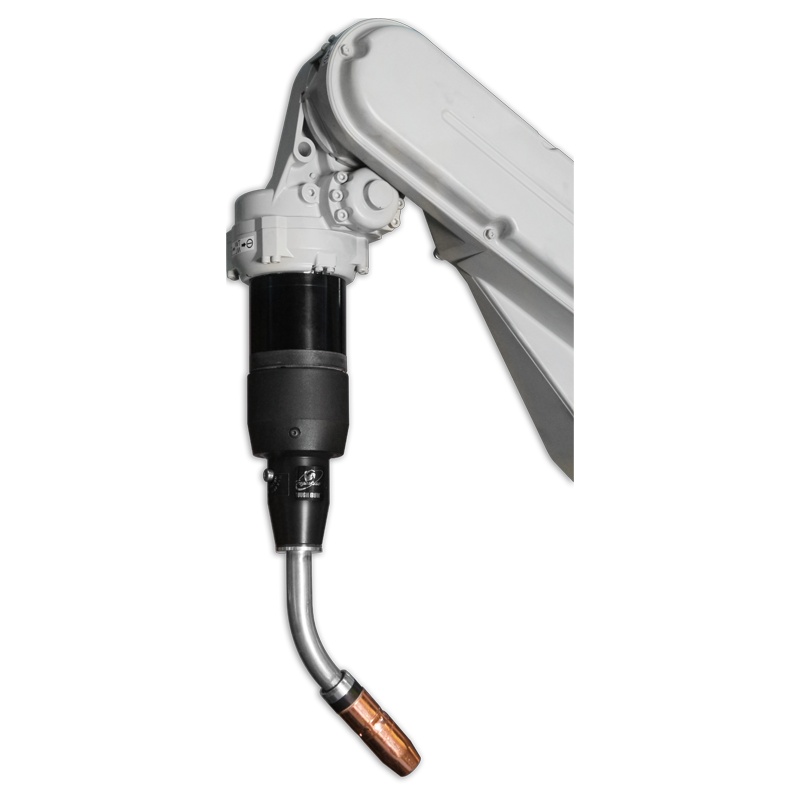

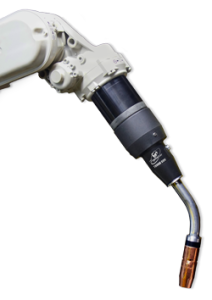

TA3 robotic air-cooled MIG gun feeds through the robot arm (ThruArm) for outstanding precision and reliability in high-volume production. At its core is the LSR+ (low-stress robotic) unicable: unlike conventional unicables, it uses a rotating power connection that reduces torsional stress as the robot moves, while a protective external conduit shields it from harsh welding environments. A re-engineered neck clamp delivers consistent clamping force, and a precision keyway system ensures accurate alignment and quick neck replacement. Additional standard neck options expand your TCP choices and cut the cost and lead time of necks that used to be specials. The TA3 replaces the ThruArm G1 series and works with existing G1 air-cooled necks, power pins, and consumables, with no change to gun part numbers. It’s available as a complete package, from power pin to contact tip, with clutch or solid mount and optional wire brake, air blast, and I.C.E.™ technology.

Specifications

Amperage Rating	350 Amps 100% Duty-Cycle with Mixed Gases
Compliance	Ratings based on tests that comply with IEC 60974-7 standards.
Cooling	Air-Cooled (I.C.E.™ optional on select models)
Wire Size Range	0.030″–5/64″ (0.8–2.0 mm)
Unicable	LSR+ low-stress robotic, sized to robot model
Articulation Limits	Axis 5: ±90° · Axes 4+6: ±270°
Consumable System	AccuLock R or TOUGH LOCK
Mounting	Clutch or solid mount (select models)
Torch Style	Robotic ThruArm
Robot Compatibility	ABB® · COMAU® · FANUC® · Kawasaki® · KUKA® · Nachi® · OTC Daihen® · Panasonic® · Yaskawa® Motoman®

Consumables

Recommended: AccuLock™ R
Also compatible: TOUGH LOCK®
Liners: QUICK LOAD® front-load liners come standard. Rear-load liners are required with wire brake.
Works with existing ThruArm G1 consumables. See spec sheet for nozzle, contact tip, and liner part numbers.

Accessories

Sold separately. Refer to the spec sheet for part numbers and details.

Configurator

Use the Configurator to build your custom torch by walking through the selection process. Choose the options you need for your application and generate the right part number.

Open the configurator Reverse lookup my part number

Ordering breakdown

TA1  F11  3  G  C  5  D  L   →   TA1F113GC5DL
 │    │   │  │  │  │  │  └─ Power pin
 │    │   │  │  │  │  └──── Wire size / liner
 │    │   │  │  │  └─────── Contact tip
 │    │   │  │  └────────── Neck
 │    │   │  └───────────── Nozzle
 │    │   └──────────────── Mount & options
 │    └──────────────────── Robot make & model
 └───────────────────────── Series

Option	Codes
Robot	ABB: A24 · A28 · A29 · A30 — COMAU: C35 — FANUC: F05 · F06 · F07 · F08 · F10 · F11 · F12 · F14 · F15 · F16 — Kawasaki: W42 · W45 · W46 · W47 — KUKA: K23 · K27 · K30 · K31 · K32 · K33 — OTC/Nachi: D03 · D22 · D25 · D26 · D36 · D37 · D38 · D50 — Panasonic: P34 · P37 · P39 · P40 · P41 — Motoman: M01 · M02 · M16 · M17 · M31 · M35 · M38 · M39 · M40
Mount & options	1 Clutch · 2 Clutch + air blast · 3 Solid · 4 Solid + air blast · 5 Clutch + wire brake · 6 Clutch + wire brake + air blast · 7 Solid + wire brake · 8 Solid + wire brake + air blast
Nozzle	A 401-6-62 · B 401-81-62 · C 401-4-62 · D 401-8-62 · G 401-48-62 · M 401-87-62 · U 401-14-62 · Z 401-20-62 · 1 401-43-62 · 2 401-18-62 · 3 401-30-62 · 4 401-30-62T · 0 None
Neck (air-cooled)	A 22° short · C 45° short · B 22° medium · E 45° medium · D 22° long
Neck (I.C.E.™)	F 22° short · H 45° short · J 22° medium · K 22° long
Contact tip	5 HD copper · 6 Chrome zirconium · 7 HDP · 0 None
Wire (standard liner)	B .030″ · C .035″ · D 1.0 mm · E .045″ · J 1/16″ · H 5/64″
Wire (E-Z Feed™ liner)	A .035″ · N 1.0 mm · P .045″ · W .052″ · Y 1/16″
Power pin	D OTC Daihen® · E Euro · F Fronius® · L Lincoln® · M Miller® · N Miller® Auto-Continuum® · P Panasonic® · T Tweco® #4 · W Tweco® #5

Ordering rules

Robot codes set the mount: ABB and FANUC are solid mount only; COMAU and OTC Daihen/Nachi are clutch only
Some robots require specific power pins: FANUC iD (F11–F16) and Kawasaki BA013 (W46, W47) need Miller® or Lincoln®; Panasonic TM (P37, P39, P41) need Miller® or Panasonic®; P40 and W45 need Miller®
I.C.E.™ necks: FANUC and ABB only, and no air blast on FANUC with I.C.E.
Chrome zirconium tips: 0.030″–0.045″ only; HDP tips: 0.035″–0.052″ only
Fronius® pin: contact Tregaskiss tech support with the feeder model
No consumables: use 0 for nozzle, contact tip, and wire size

Tool Center Point

Repeatable TCP, every neck change.

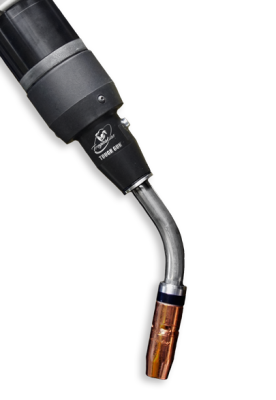

TA3 robotic MIG guns are engineered to hold an accurate, repeatable tool center point. A precision keyway system aligns the neck the same way every time, and a re-engineered neck clamp delivers consistent clamping force. With a wide range of standard necks, you can match the TCP and working envelope to your application without waiting on special-order parts.

Ranges vary by robot make and model. Adding wire brake increases TCP by approximately 36–37 mm on most robots. *Available as a separately ordered neck. See the spec sheet for exact TCP values by robot model.

Keep TCP on target

Precision keyway system: accurate neck alignment for quick, repeatable replacement
Re-engineered neck clamp: consistent clamping force for stable positioning
AccuLock™ R consumables: in most cases, upgrade your tip and diffuser with no impact to TCP
Neck checking fixture (G-405CA): verify and re-master TCP, and realign the neck after a collision
