Clean Air E™ Fume Extraction MIG Guns

The Bernard® Clean Air E™ fume extraction MIG gun captures up to 95% of welding fumes at the source while matching the weight and handle size of a standard air-cooled MIG gun.

300-400 AMPS

AIR-COOLED

DUTY-CYCLE 60%

ACCULOCK™ S CONSUMABLES

GMAW/MIG

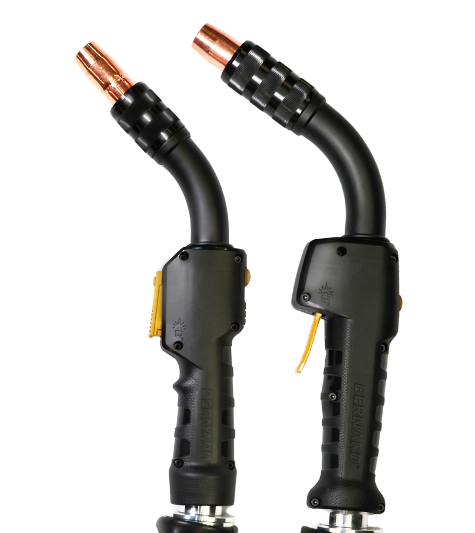

2 HANDLE STYLES

View product documentation Request more info Build your part number

Captures Up To 95% of Fume
Ergonomic Handle
Easy Maintenances

Overview

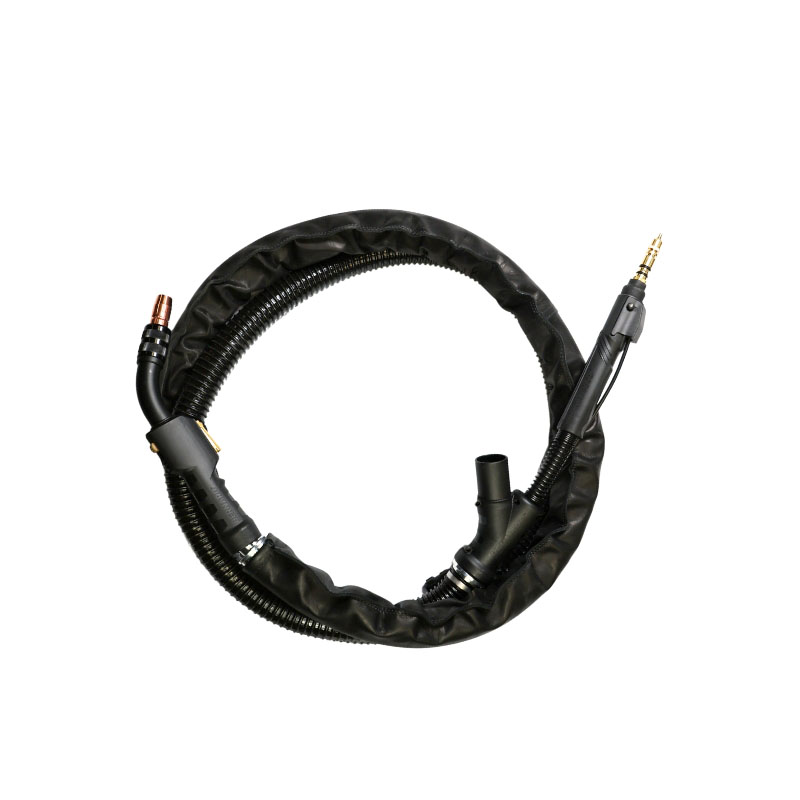

The Bernard® Clean Air E™ fume extraction MIG gun captures up to 95% of weld fumes right at the source, helping keep your shop cleaner while giving welders a clear view of the weld. It’s lighter than the original Clean Air™ gun and designed to reduce fatigue over long shifts, with a flexible, low-profile cover that protects against heat and abrasion. A vacuum flow control slide lets operators fine-tune extraction for the job, and it connects to vacuum systems from most major manufacturers.

Specifications

Amperage Rating	300 Amps, 400 amps - 100% Duty-Cycle With CO2, 60% Duty-Cycle with Mixed gases
Cooling	Air-Cooled
Wire Size	"- 5/64" (0.8 mm-2.0 mm)
Cable Lengths	15 ft, 20ft, 25ft
Consumable System	Acculock™ S

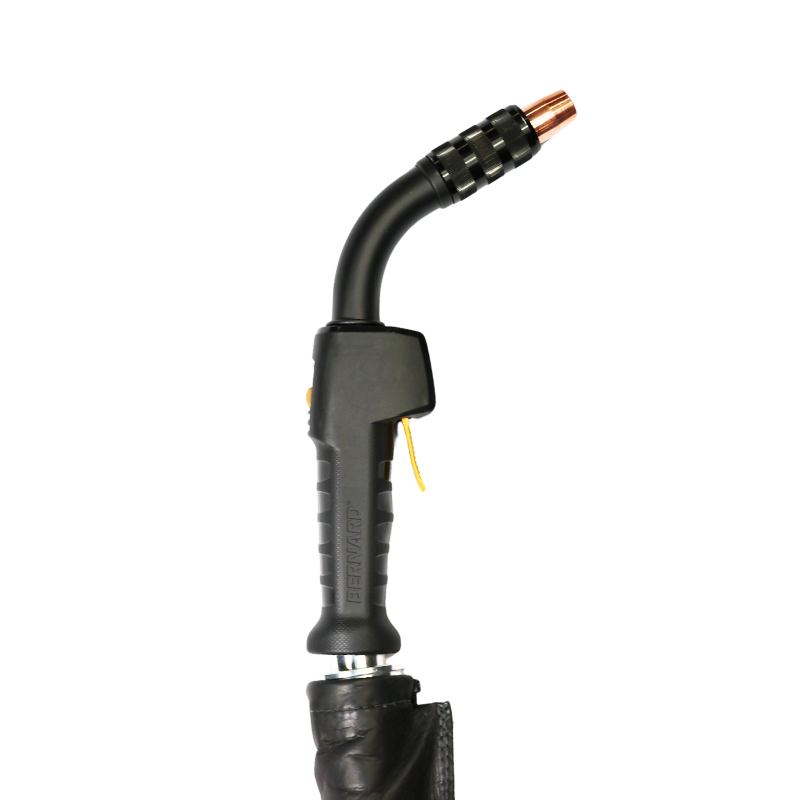

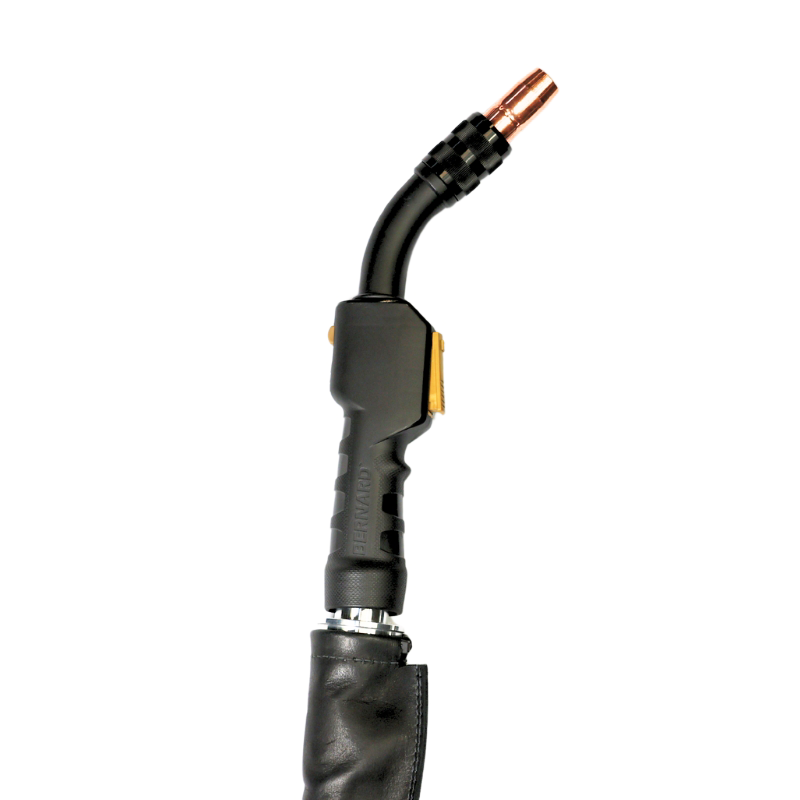

Handle Styles	Lever Handle, Button Handle

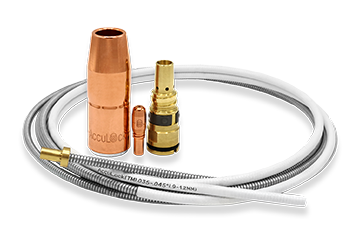

Consumables

Compatible: AccuLock™ S
Not compatible: AccuLock™ R · Centerfire™ · Quik Tip™ · TOUGH LOCK® · TOUGH ACCESS™
Applies to Clean Air E™ fume extraction MIG guns. See spec sheet for part numbers and details.

Accessories

Sold separately. Refer to the spec sheet for part numbers and details.

Jackets

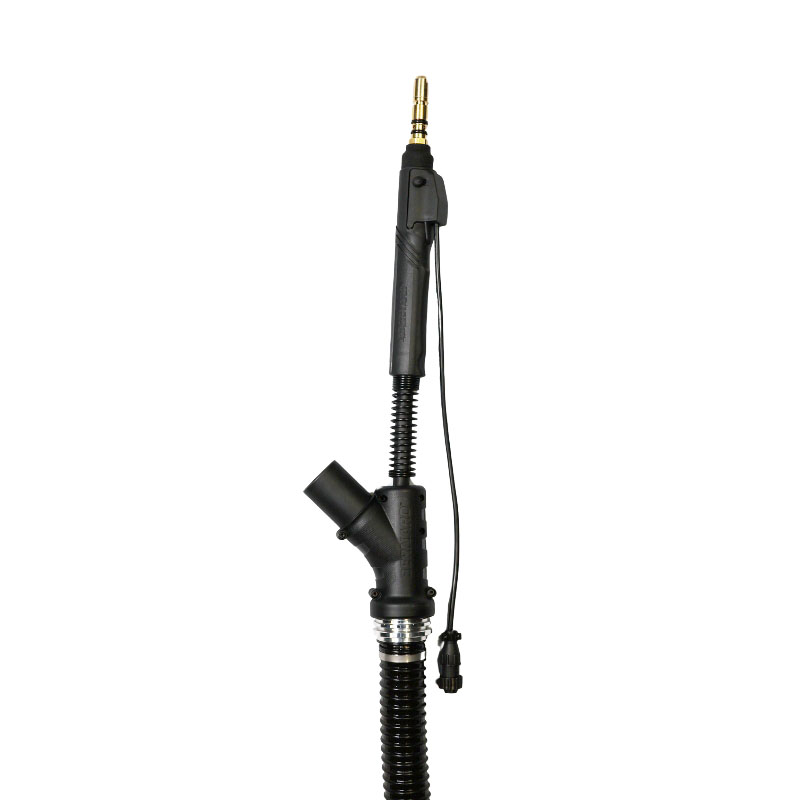

Y Connectors
Hose Kits
Handle Kits
Extended Lever Trigger
Extraction Shrouds

Configurator

Open the configurator Reverse lookup my part number

E40  15  A  K  5  E  M  C   →   E4015AK5EMC
 │    │  │  │  │  │  │  └─ Liner
 │    │  │  │  │  │  └──── Power pin
 │    │  │  │  │  └─────── Wire size
 │    │  │  │  └────────── Consumables
 │    │  │  └───────────── Neck
 │    │  └──────────────── Handle / trigger
 │    └─────────────────── Length (ft)
 └──────────────────────── Amperage

Amperage

E30	E3J	E40	E4J
300 A	300 A, full-length jacket	400 A	400 A, full-length jacket
≤ 0.045″	≤ 1/16″	≤ 1/16″	≤ 1/16″

Length

15	20	25
15′ (4.6 m)	20′ (6.1 m)	25′ (7.6 m)

Handle / Trigger

A	B	C	D	F
Lever, trigger on bottom	Lever, trigger on top	Lever on bottom, ext. length	Lever on top, ext. length	Button switch, standard

Neck

J	K	L	M
Medium 45°	Medium 60°	Extended 45°	Extended 60°

Consumables (AccuLock™ S)

	Rear-load liner	Front-load liner
Small	4	6
Large	5	7

Wire Size

Steel	B	C	D	E	H	I
in	.030	.035	.039	.045	.052	1/16
mm	0.8	0.9	1.0	1.2	1.4	1.6

Aluminum	Q	R	S
in	.035	3/64	1/16
mm	0.9	1.2	1.6

Power Pin

E	L	M	T
Euro (rear-load liner only)	Lincoln®	Miller®	Tweco® #4 (Lincoln lead)

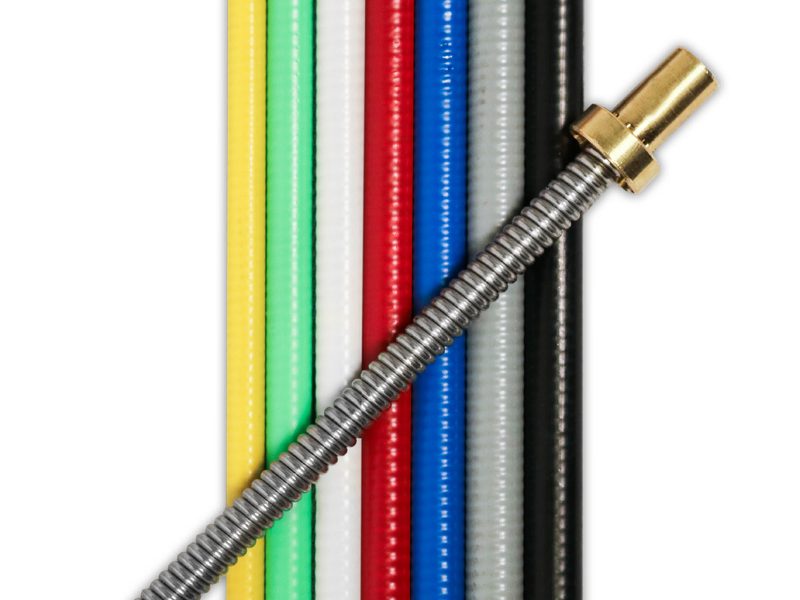

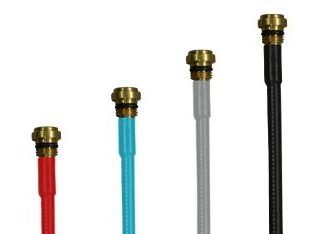

Liner

A	C
Front load (use with consumables 6 or 7)	Rear load (use with consumables 4 or 5)

Ordering rules

Consumables 4 or 5 → liner C
Consumables 6 or 7 → liner A
Euro pin E → liner C only
E30 → 0.045″ wire max (no H or I)

Fume Capture Performance

Specification	E30 Series (300A)	E40 Series (400A)
Min. extraction flow rate at nozzle shroud	59.5 m³/h (35 CFM)	59.5 m³/h (35 CFM)
Min. extraction flow rate at Y-connector	66.3 m³/h (39 CFM)	66.3 m³/h (39 CFM)
Min. extraction pressure difference at Y-connector	5.0 kPa (20″ w.g.)	5.0 kPa (20″ w.g.)
Extraction efficiency (ISO 21904-3)	Up to 95%*	Up to 95%*
Wire size	0.030″–0.052″ (0.8–1.4 mm)	0.030″–5/64″ (0.8–2.0 mm)
Max. control voltage	113 V	113 V
Duty cycle (IEC 60974-7:2019)	60% at 300A, mixed gases	60% at 400A, mixed gases
