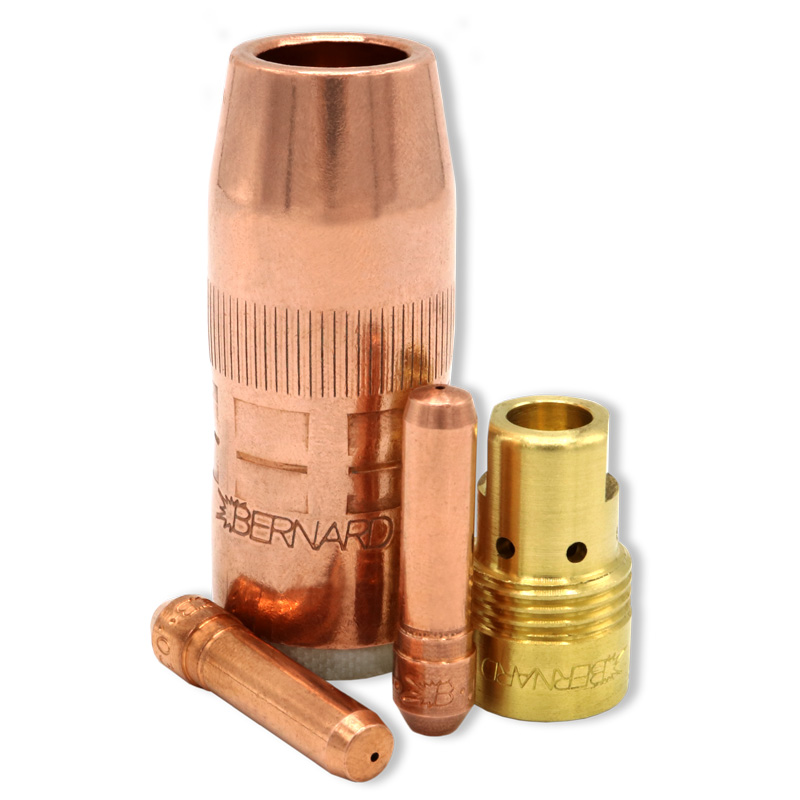

Centerfire consumables family shown with contact tips, nozzle and diffuser

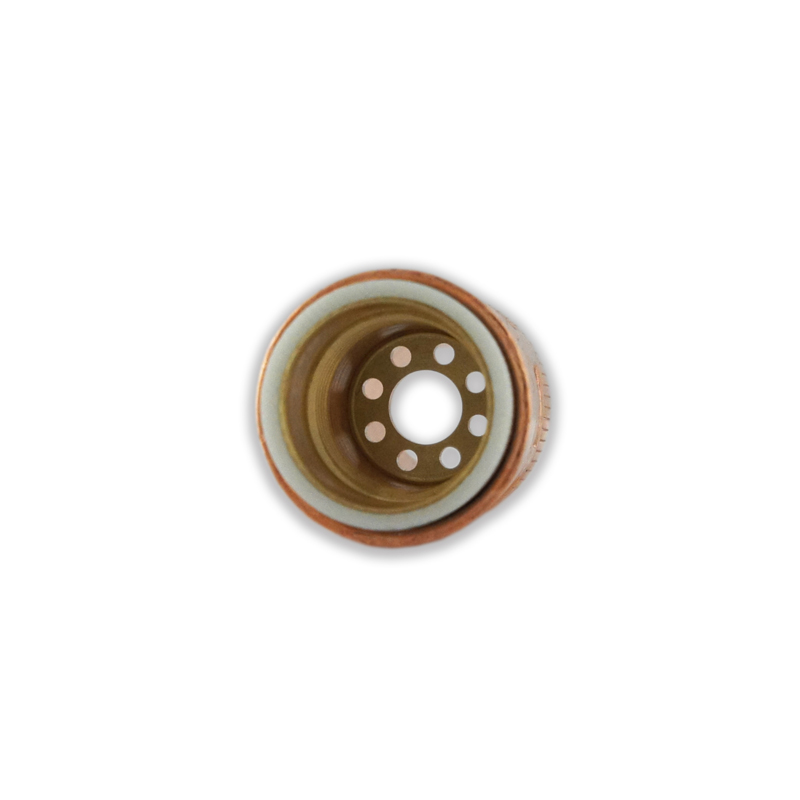

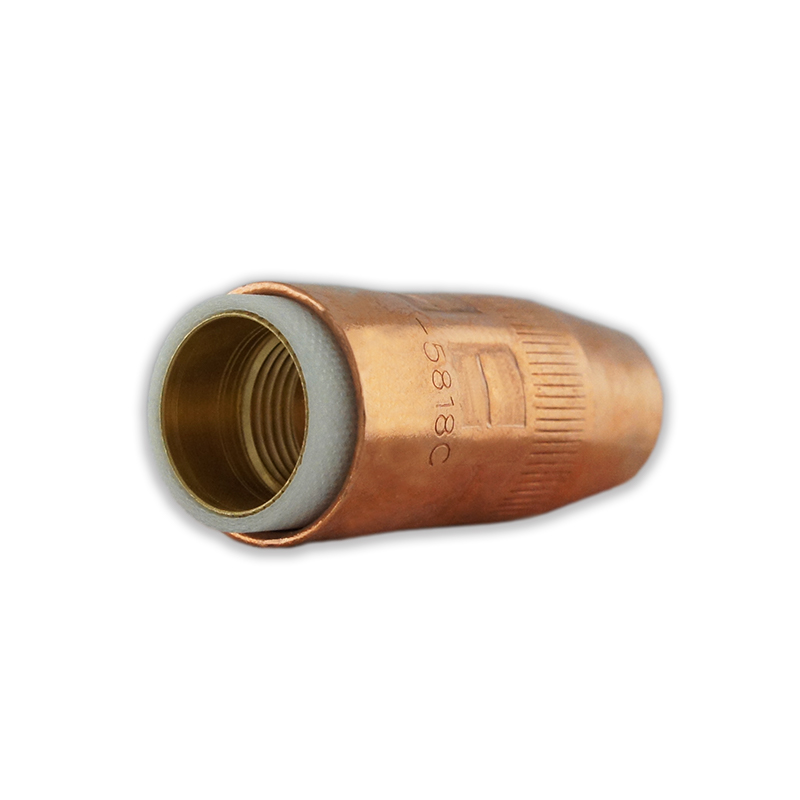

Centerfire nozzle shown from bottom at 45-degree angle

Centerfire Consumables

Bernard® Centerfire™ consumables deliver better arc starts, less spatter, and more consistent welds, with tool-free tip and nozzle changes and tips that last up to 3x longer than most brands.

SEMI-AUTO MIG GUNS

GMAW/MIG

UP TO 3X TIP LIFE

NO TOOLS REQUIRED

360° TIP ROTATION

GENUINE OEM

View product documentation Request more info

Tool-free tip and nozzle changes
Up to 3x longer life than most brands
Converts most major MIG gun brands

Overview

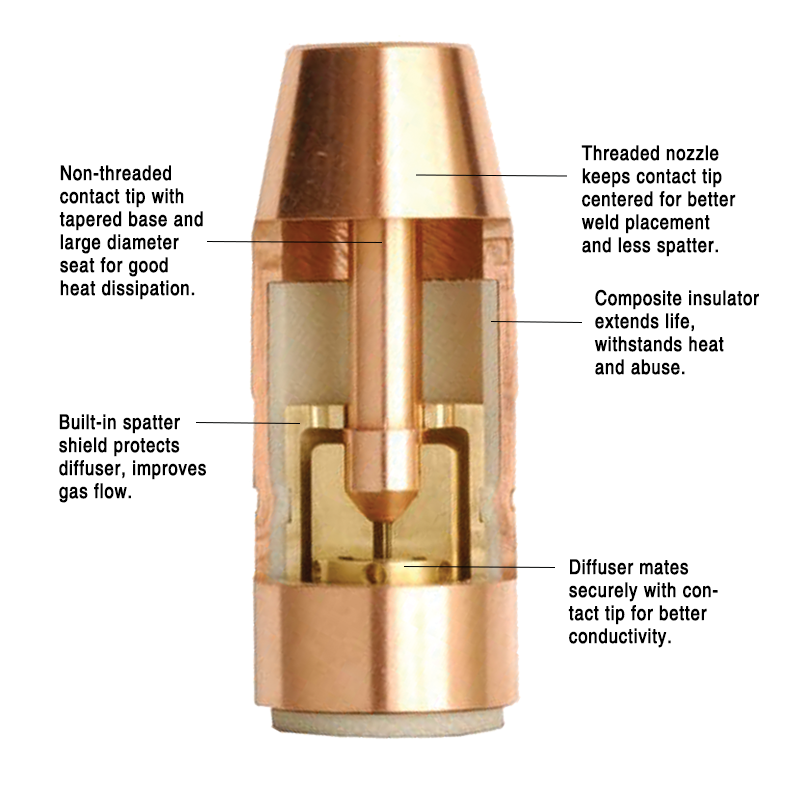

Easy to use and built with cost in mind, Bernard® Centerfire™ consumables provide better arc starts, less spatter, and more consistent welds, while lasting up to three times longer than most brands. The threadless, drop-in contact tip changes in seconds with no tools, so you’re back to welding fast after a burnback. A large-diameter tip base and tapered seat deliver better electrical conductivity and heat transfer, and tips rotate 360° so you can create new wear surfaces and extend tip life. The threaded nozzle keeps the tip centered, even after hard use and abuse, and holds it at a fixed 1/4″ or 1/8″ recess, flush, or 1/8″ stick-out. A spatter shield inside the nozzle protects the diffuser and smooths gas flow for less turbulence, oxidation, and contamination. With a complete family of tips and nozzles, plus the Centerfire Conversion Series for most major MIG gun brands, Centerfire covers most of your welding needs.

Specifications

Compatible guns	Bernard® BTB, S-Gun™, PipeWorx™, TGX™, Clean Air™, Dura-Flux™, W-Gun™, and Q-Gun™, plus other brands via the Conversion Series *TGX™ made after March 1, 2024; Clean Air™ made after June 23, 2014.
Wire sizes	0.023″–3/32″ (0.6–2.4 mm)
System components	Contact tips, nozzles, diffusers/tip holders, insulators
Nozzle sizes	Small (0.875″ O.D.), large (1.063″ O.D.), water-cooled (1.000″ O.D.), HD (two-piece)
Contact tips	'T' Series, 'TT' Series, 'T' Series aluminum-specific; all 0.350″ O.D.
Applications	Shipbuilding, commercial truck & trailer, heavy equipment, general manufacturing & fabrication

Consumables

Contact Tips

Centerfire ‘T’ Series Contact Tips; Copper
All Centerfire contact tips are 0.350″ O.D. For use with Centerfire and Centerfire HD consumables.

Part Number	Description
T-023	0.023″ (0.6 mm); qty. 10
T-030	0.030″ (0.8 mm); qty. 10
T-035	0.035″ (0.9 mm); qty. 10
T-039	0.039″ (1.0 mm); qty. 10

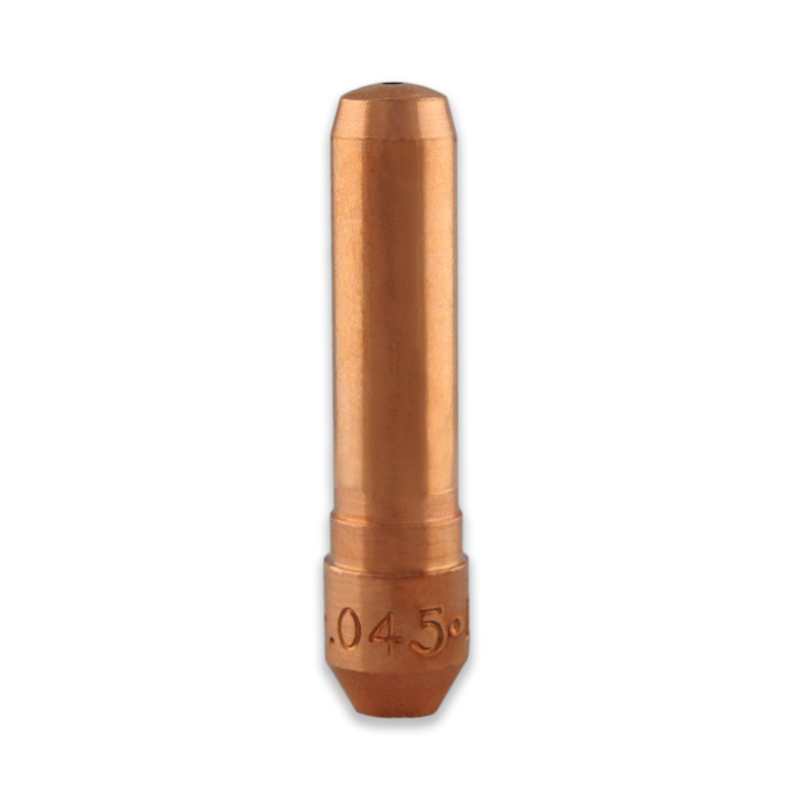

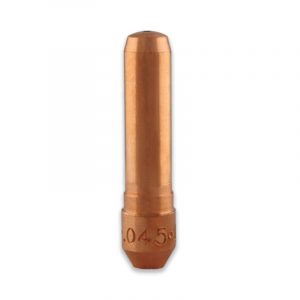

T-045	0.045″ (1.2 mm); qty. 10
T-052	0.052″ (1.4 mm); qty. 10
T-062	1/16″ (1.6 mm); qty. 10
T-072	0.072″ (1.8 mm); qty. 10
T-078	5/64″ (2.0 mm); qty. 10
T-094	3/32″ (2.4 mm); qty. 10

Centerfire ‘TT’ Series Contact Tips; Copper, Tapered
For use with Centerfire consumables. Not for use with Centerfire HD consumables.

Part Number	Description
TT-030	0.030″ (0.8 mm); qty. 10
TT-035	0.035″ (0.9 mm); qty. 10
TT-039	0.039″ (1.0 mm); qty. 10
TT-045	0.045″ (1.2 mm); qty. 10
TT-052	0.052″ (1.4 mm); qty. 10
TT-062	1/16″ (1.6 mm); qty. 10

Centerfire ‘T’ Series Contact Tips; Aluminum-Specific

Part Number	Description
T-035AL	0.035″ (0.9 mm); qty. 10
T-047AL	3/64″ (1.2 mm); qty. 10
T-062AL	1/16″ (1.6 mm); qty. 10

Gas Diffusers and Tip Holders

Part Number	Description

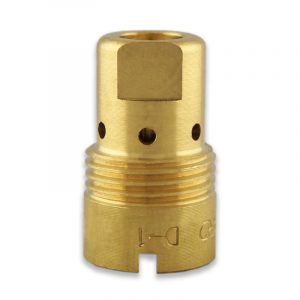

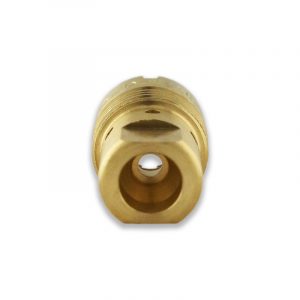

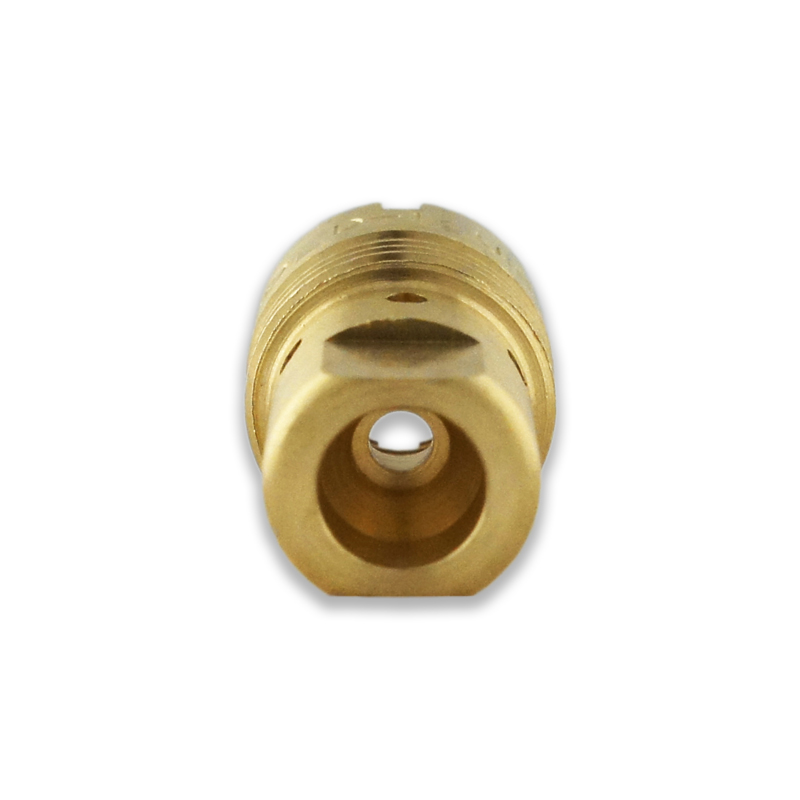

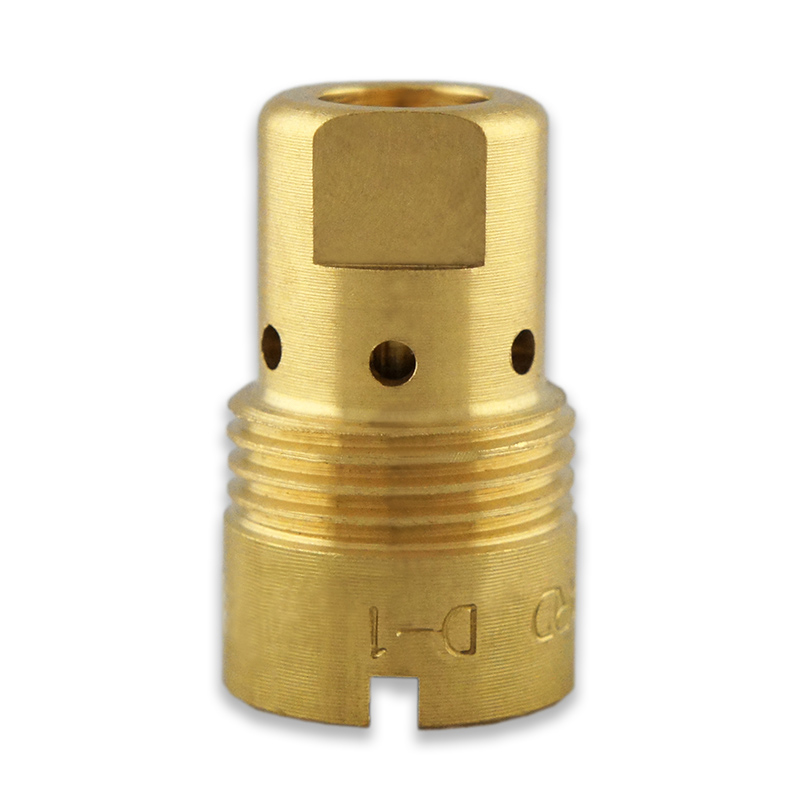

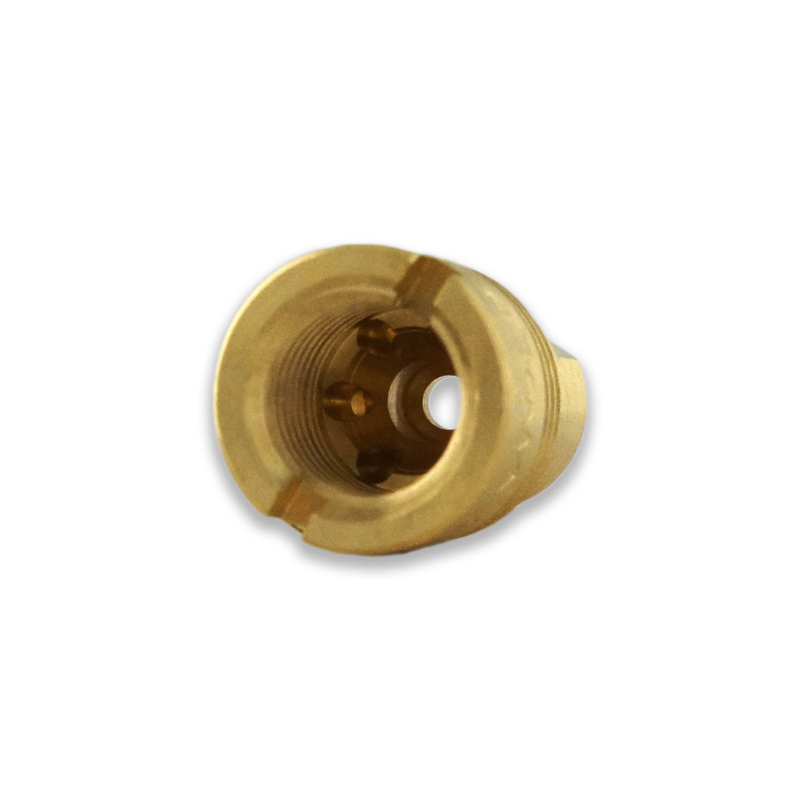

D-1	Gas diffuser, large; for Centerfire and Centerfire HD; qty. 10
DS-1	Gas diffuser, small; qty. 10
DW-1	Gas diffuser, water-cooled; qty. 10
THW-1	Tip holder, water-cooled; for use with DW-1; qty. 10

Neck Insulators

Part Number	Description
4523R	Insulator, small; for use with DS-1; qty. 5
4423R	Insulator, large; for use with D-1 and Centerfire HD; qty. 5

Nozzles

Centerfire Nozzles; Small (0.875″ O.D.; use with DS-1 diffuser)

Part Number	Description
NS-5800C	5/8″ bore, flush, copper; qty. 10
NS-5818C	5/8″ bore, 1/8″ recess, copper; qty. 10
NS-5800B	5/8″ bore, flush, brass; qty. 10
NS-5818B	5/8″ bore, 1/8″ recess, brass; qty. 10
NS-1218C	1/2″ bore, 1/8″ recess, copper; qty. 10
NS-1200B	1/2″ bore, flush, brass; qty. 10
NS-1218B	1/2″ bore, 1/8″ recess, brass; qty. 10
NST-3800B	3/8″ bore, flush, brass; tapered; qty. 10
NST-3818B	3/8″ bore, 1/8″ recess, brass; tapered; qty. 10
NST-38XTB	3/8″ bore, 1/8″ extension, brass; tapered; qty. 10

Centerfire Nozzles; Large (1.063″ O.D.; use with D-1 diffuser)

Part Number	Description
N-5800C	5/8″ bore, flush, copper; qty. 10

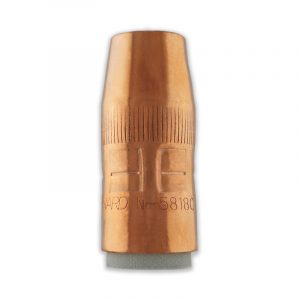

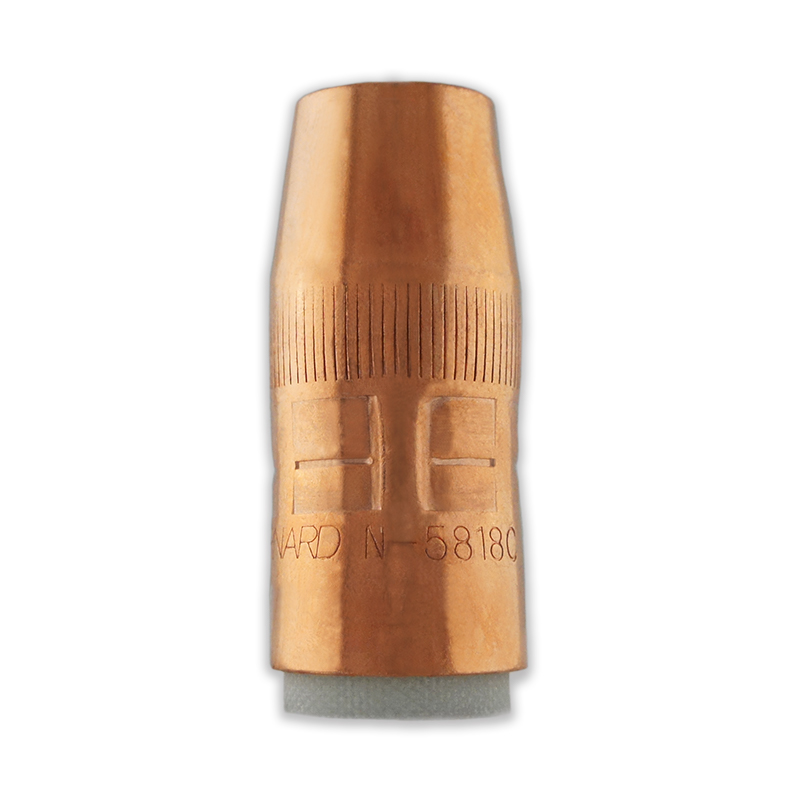

N-5818C	5/8″ bore, 1/8″ recess, copper; qty. 10
N-5814C	5/8″ bore, 1/4″ recess, copper; qty. 10
N-5818B	5/8″ bore, 1/8″ recess, brass; qty. 10
N-5814B	5/8″ bore, 1/4″ recess, brass; qty. 10
N-3400C	3/4″ bore, flush, copper; qty. 10
N-3418C	3/4″ bore, 1/8″ recess, copper; qty. 10
N-3414C	3/4″ bore, 1/4″ recess, copper; qty. 10
N-3418B	3/4″ bore, 1/8″ recess, brass; qty. 10
N-3414B	3/4″ bore, 1/4″ recess, brass; qty. 10
NT-3800C	3/8″ bore, flush, copper; tapered; qty. 10

Centerfire Nozzles; Water-Cooled (1.000″ O.D.; use with DW-1 diffuser and THW-1 tip holder)

Part Number	Description
NW-3418C	3/4″ bore, 1/8″ recess, copper; qty. 10
NW-3414C	3/4″ bore, 1/4″ recess, copper; qty. 10

Centerfire HD Series
One nozzle body and one nozzle cone required; order separately. Use with D-1 diffuser, 4423R insulator, and ‘T’ Series contact tips.

Part Number	Description
N-HDC	HD nozzle body; qty. 10
3418	HD nozzle cone, 3/4″ bore, 1/8″ recess; qty. 10
5814	HD nozzle cone, 5/8″ bore, 1/4″ recess; qty. 10
5818	HD nozzle cone, 5/8″ bore, 1/8″ recess; qty. 10

Kits

Part Number	Description
NS-FLX	Self-shielded conversion kit; includes 7010046 tip holder and 7010024 and 7010059 insulators
CSK-1	Centerfire starter kit; converts Bernard® BTB or select competitor MIG guns to Centerfire consumables
