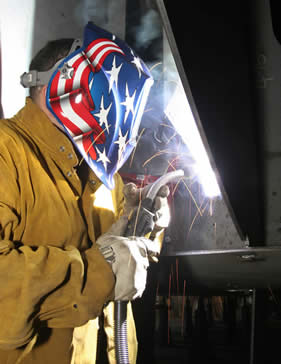

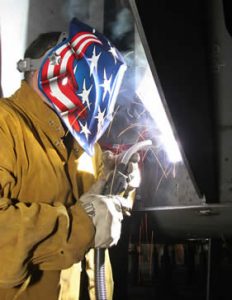

gmaw welding gun in action — semi-automatic water-cooled MIG gun

W-Gun MIG Guns

Weld longer and cooler with the Bernard® W-Gun, whose flexible cable and reinforced hoses deliver leak-free, high-flow water cooling for demanding jobs.

600 AMP

WATER-COOLED

100% DUTY-CYCLE

ACCULOCK R

GMAW/MIG

1 HANDLE STYLE

View product documentation Request more info

Water-Cooled
Easy To Maintain
Compatible with Many Major Power Sources

Overview

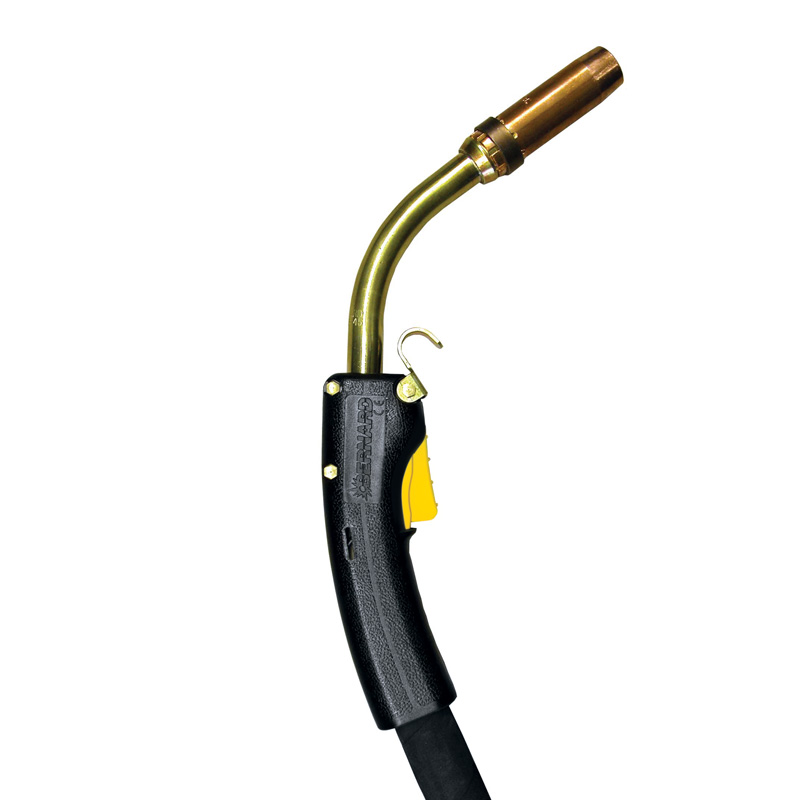

Bernard® W-Gun Semi-Automatic Water-Cooled MIG Guns feature a flexible cable assembly with reinforced hoses for leak-free, increased water flow. Heavy duty necks in multiple lengths and bend configurations, plus varied handle and trigger options, ensure comfort and access.

Specifications

Cooling	Water-Cooled
Process	MIG (GMAW) Welding
Cable Lengths	10, 15, 20, 25 Ft
Duty Cycle	100%: 600 Amp With Mixed Gases

Consumables

Recommended: AccuLock™ R
Also compatible: Centerfire™ · Quik Tip™
Not compatible: AccuLock™ S · TOUGH LOCK® · TOUGH ACCESS™
Applies to W-Gun™ water-cooled MIG guns. See spec sheet for part numbers and details.

Accessories

Sold separately. Refer to the spec sheet for part numbers and details.

WATER COOLER HOOK-UP KITS

Ordering Information

W60  15  A  I  4  C  M   →   W6015AI4CM
 │    │  │  │  │  │  └─ Power pin
 │    │  │  │  │  └──── Wire size
 │    │  │  │  └─────── Contact tip
 │    │  │  └────────── Neck
 │    │  └───────────── Handle / trigger
 │    └──────────────── Length (ft)
 └───────────────────── Amperage

Amperage

W60
600 A

Length

10	15	20	25
3.05 m	4.57 m	6.16 m	7.63 m

Handle / Trigger

A	B	C	D
Standard trigger	Locking trigger	Dual pull trigger	Dual schedule switch

Neck

	30°	45°	60°	180°
Short	A	B	C	D
Medium	H	I	J	K
Long	P	Q	R	S

Contact Tip

4	8
AccuLock™ R	Centerfire™

Wire Size

Steel	C	D	E	H	I	K	L
in	.035	.039	.045	.052	1/16	5/64	3/32
mm	0.9	1.0	1.2	1.4	1.6	2.0	2.4

Aluminum	Q	R	S
in	.035	3/64	1/16
mm	0.9	1.2	1.6

Power Pin

E	L	M	S	T
Euro	Lincoln	Miller	Tweco #4 (Lincoln lead)	Tweco #4 (std. lead)

Notes

E-Z Feed™ rear load liners are standard with AccuLock R (tip code 4).

Most common part numbers

W6015AI8EM 600 Amp, Standard Trigger, 15 ft Cable, Centerfire Consumable, 45° Medium Neck, Miller Power Pin, 0.045" Wire W6015AB8EM 600 Amp, Standard Trigger, 15 ft Cable, Centerfire Consumable, 45° Short Neck, Miller Power Pin, 0.045" Wire W6020BS4IM 600 Amp, Locking Trigger, 20 ft Cable, AccuLock R Consumable, 180° Long Neck, Miller Power Pin, 1/16" Wire W6015AI4EM 600 Amp, Standard Trigger, 15 ft Cable, AccuLock R Consumable, 45° Medium Neck, Miller Power Pin, 0.045" Wire W6015AI8IM 600 Amp, Standard Trigger, 15 ft Cable, Centerfire Consumable, 45° Medium Neck, Miller Power Pin, 1/16" Wire
