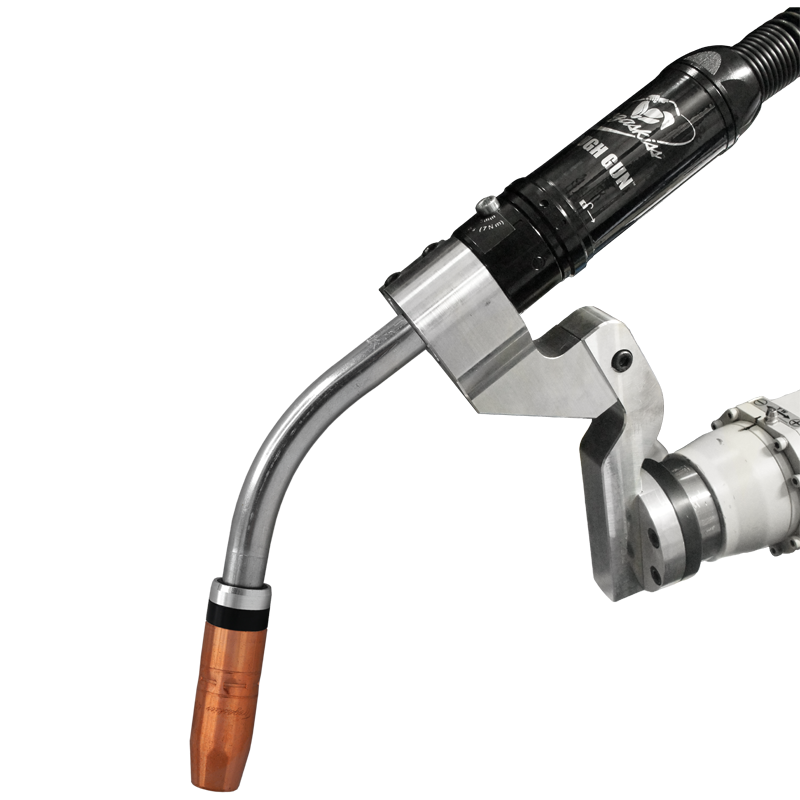

TOUGH GUN CA3 robotic air-cooled MIG gun with medium length 45-degree neck

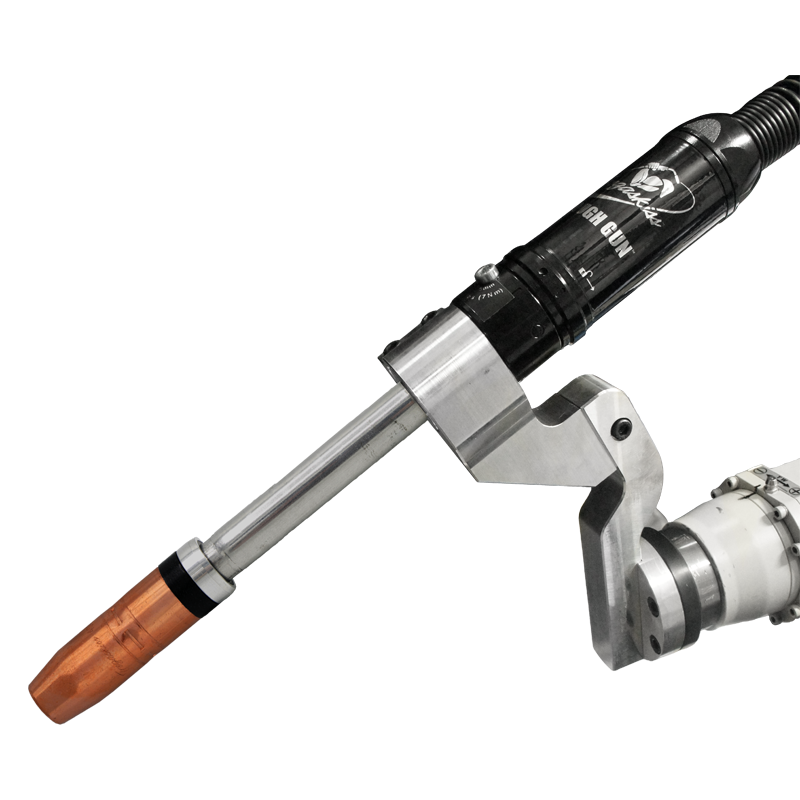

TOUGH GUN CA3 robotic air-cooled MIG gun with straight neck

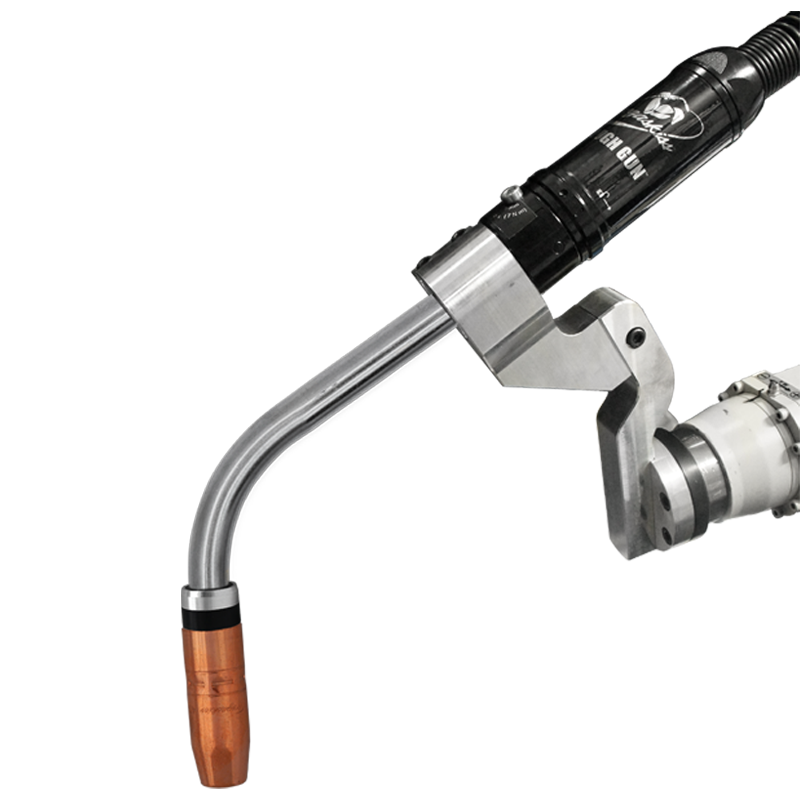

TOUGH GUN CA3 robotic air-cooled MIG gun with long 45-degree neck

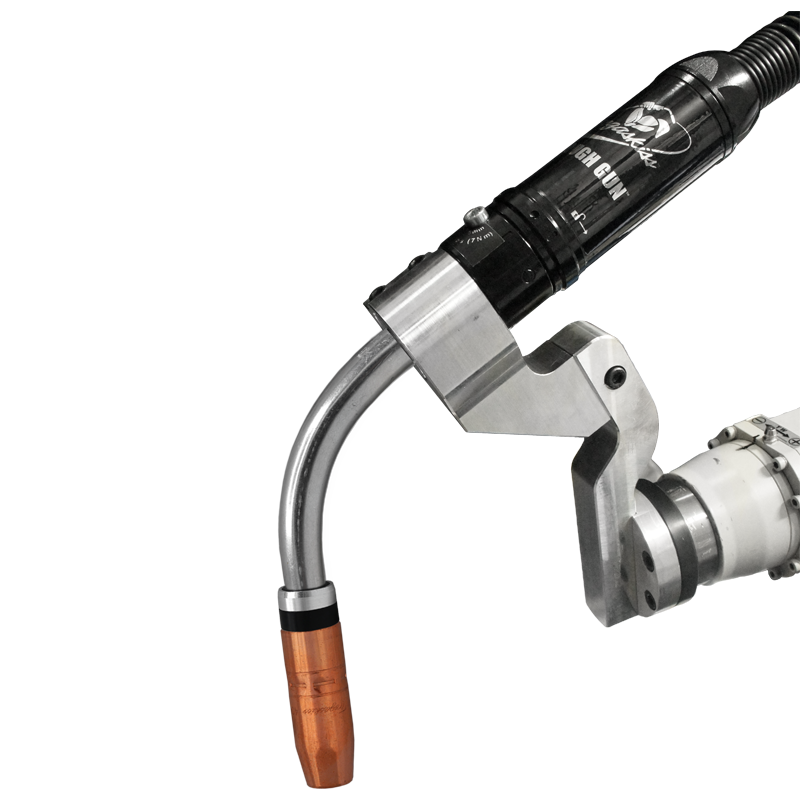

TOUGH GUN CA3 robotic air-cooled MIG gun with short 45-degree neck

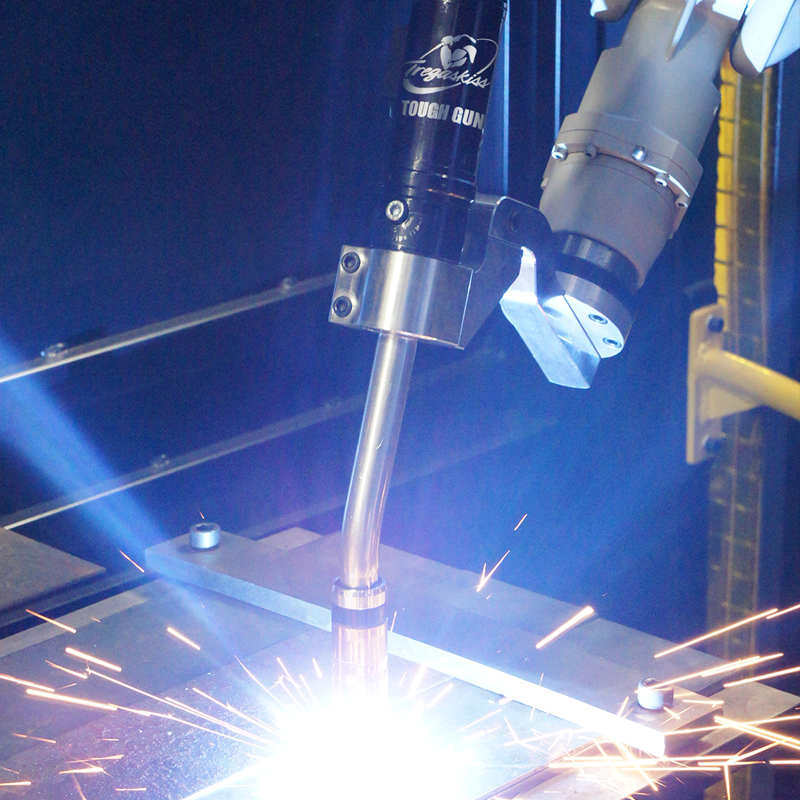

TOUGH GUN CA3 robotic air-cooled MIG gun in action with colorful welding sparks

CA3 Robotic MIG Torch

A 350 amp air-cooled robotic MIG gun built for high-volume production, with a replaceable Unicable for faster repairs.

OVER-THE-ARM

350 AMPS

DUTY-CYCLE 100%

AIR-COOLED

ACCULOCK™ R CONSUMABLES

GMAW/MIG

View product documentation Request more info Build your part number

Less cable wear
Consistent, repeatable welds
Configured your way

Overview

The CA3 robotic air-cooled MIG gun is designed for high-volume production, combining the best features of the G1 and G2 Series platforms with improved unicable technology for longer service life. Rated at 350 amps with a 100% duty cycle on mixed gases, it’s engineered for precision, repeatability, and minimal downtime. A replaceable unicable makes repairs faster and less costly, while a cable guide reduces stress on the connection as the robot articulates. A re-engineered neck clamp delivers consistent clamping force, and a wide range of standard necks and mounting arms expands your tool center point options and working envelope. Choose clutch or solid mount, add wire brake, air blast, or I.C.E.™ technology, and run TOUGH LOCK® or AccuLock™ R consumables.

Specifications

Amperage Rating	350 Amps 100% Duty-Cycle with Mixed Gases
Compliance	Ratings based on tests that comply with IEC 60974-7 standards.
Cooling	Air-Cooled (I.C.E.™ optional)
Wire Size Range	Wire size: 0.030″–3/32″ (0.8–2.4 mm) Aluminum: 0.035″–1/16″ (0.9–1.6 mm)
Cable Lengths	3 ft - 15 ft
Consumable System	AccuLock R or TOUGH LOCK
Mounting	Clutch or Solid mount
Torch Style	Over-The-Arm Robotic and cobot

Consumables

Recommended: AccuLock™ R
Also compatible: TOUGH LOCK®
Liners: QUICK LOAD® front-load liners come standard. Rear-load liners are used for 0.030″ wire or guns with wire brake.
See spec sheet for nozzle, contact tip, and liner part numbers.

Accessories

TT4 Reamer
Tough Gard Multi-Feed System
Tough Gard Anti-Spatter Liquid
Neck Checking Fixture

Configurator

Use the Configurator to build your custom torch by walking through the selection process. Choose the options you need for your application and generate the right part number.

Open the configurator Reverse lookup my part number

Ordering breakdown

RA1  1  A  A  C  G  D  1  C  M   →   RA11AACGD1CM
 │   │  │  │  │  │  │  │  │  └─ Power pin
 │   │  │  │  │  │  │  │  └──── Wire size / liner
 │   │  │  │  │  │  │  └─────── Control cable
 │   │  │  │  │  │  └────────── Nozzle
 │   │  │  │  │  └───────────── Cable length
 │   │  │  │  └──────────────── Contact tip + diffuser
 │   │  │  └─────────────────── Options
 │   │  └────────────────────── Neck
 │   └───────────────────────── Mount (1 clutch, 2 solid)
 └───────────────────────────── Series

Option	Codes
Mount	1 Clutch · 2 Solid
Neck (air-cooled)	A 22° short · B 45° short · C 180° · D 22° medium · E 45° medium
Neck (I.C.E.™)	H 22° short · J 45° short
Options	A None · B Wire brake · C Air blast · E Wire brake + air blast
Tip + diffuser (slip-on)	A HD copper · B Chrome zirconium · C HDP
Tip + diffuser (thread-on)	D HD copper · E Chrome zirconium · F HDP
Cable length	A 3′ · B 3.5′ · C 4′ · D 4.5′ · E 5′ · F 5.5′ · G 6′ · H 6.5′ · J 7′ · K 7.5′ · L 8′ · M 8.5′ · N 9′ · P 9.5′ · R 10′ · S 12′ · T 15′
Nozzle (slip-on)	A 401-6-62 · D 401-81-62 · G 401-8-62 · K 401-48-62 · N 401-71-62 · P 401-87-62 · 3 401-30-62
Nozzle (thread-on)	D 401-14-62 · E 401-18-62 · G 401-43-62 · L 401-20-62 · 4 401-30-62T
Control cable	0 None · 1 5 m bare end · 2 2 m bare end · 3 18″ 4-pin · 4 24″ 3-pin · 5 18″ 12-pin · 7 24″ 5-pin
Wire (standard liner)	B .030″ · C .035″ · D 1.0 mm · E .045″ · G .052″ · J 1/16″ · L .078″ · M 3/32″
Wire (E-Z Feed™ liner)	A .035″ · N 1.0 mm · P .045″ · W .052″ · Y 1/16″
Wire (aluminum)	R .035″ · U .045″ · T 1/16″
Power pin	B Bernard® · C L-Tec® Euro · D OTC Daihen® · E Euro · F Fronius® · L Lincoln® · M Miller® · P Panasonic® · R Tweco® #5 (ext. gas) · S Lincoln® (short) · T Tweco® #4 · W Tweco® #5

Ordering rules

Nozzle codes D and G mean different parts depending on whether the tip code is slip-on (A–C) or thread-on (D–F)
Solid mount (2): no control cable, so use 0
E-Z Feed™ liners: 6′ cables or shorter only, and not with wire brake
Chrome zirconium tips: 0.035″, 1.0 mm, and 0.045″ only; HDP tips: 0.035″–0.052″ only
No consumables: use 0 for tip + diffuser, nozzle, and wire size

Mounting disc, arm, and gun mount are ordered separately (Steps 2–4). Cobot BAS arms don’t use a gun mount.

Step 2: Insulating/Transition Disc
Choose the disc that matches your robot or cobot model (59D and 59DT series).
See spec sheet for the full robot-to-disc list.

Step 3: Mounting Arm

Robotic

Part	Neck	TCP
CA2201	22° short (405-22QC)	316 mm
CA2202	22° medium (405-22QCL)	350 mm
CA2203	22° medium (405-22QCL)	400 mm
CA4501	45° medium (405-45QCL)	350 mm
CA4502	45° long (405-45QCL1)	400 mm
CA1801	180° (405-180QC)	294 mm

Cobot (all 350 mm TCP)

Part	Neck	Free drive switch
BAS2201A / BAS4501A	22° / 45° short	None (standard)
BAS2201B / BAS4501B	22° / 45° short	Controller I/O (3-pin, 5 m cable)
BAS2201C / BAS4501C	22° / 45° short	UR wrist I/O (8-pin), Universal Robots only
