Bernard® Rear Load Liners
Bernard® rear load liners are made of high-carbon music wire for smooth wire feeding and long life, with color-coded sizes that simplify your inventory.
- Smooth wire feeding, long life
- Won’t gap when bent
- Color-coded by wire size
- Simplifies and reduces inventory
Overview
Simplify and reduce your inventory.

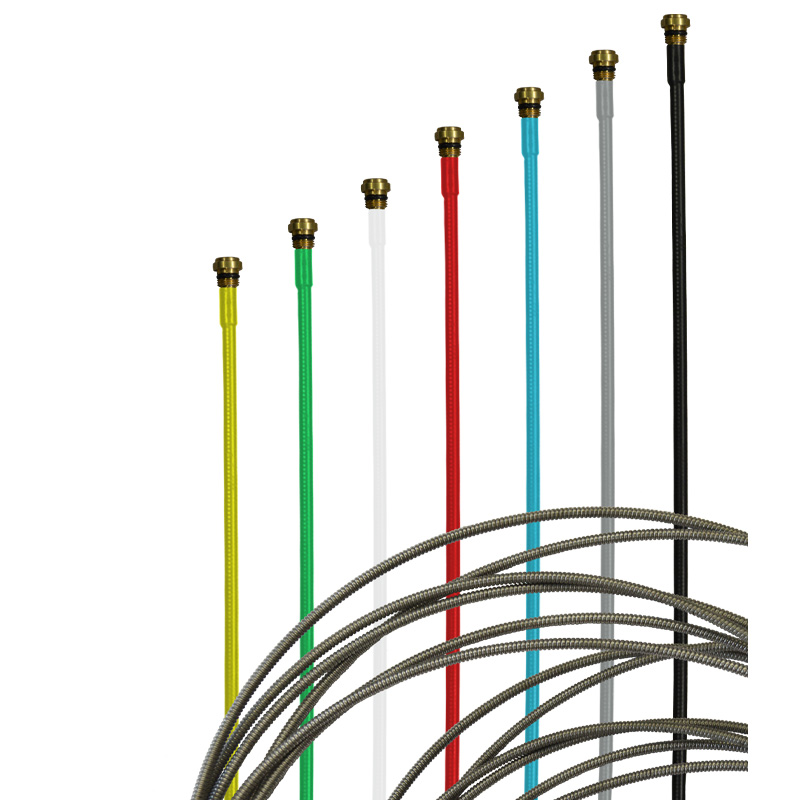

Bernard® rear load liners are made of high-carbon music wire for smooth wire feeding and long life, and they won’t gap when bent. Color-coded shrink wrap makes it easy to identify the right size at a glance, and one family of liners covers wire from 0.023″ to 1/8″, so you can stock fewer parts. The 0.035″–0.045″ and 0.045″–1/16″ sizes feature E-Z Feed™ technology, with a corrosion-resistant coating and enhanced coil profile for even smoother feeding, and are now standard on Bernard MIG guns. While other rear load liner options are available, we recommend Bernard rear load liners for all BTB MIG guns, regardless of handle shape or type.
For aluminum wire applications, see our conventional liners.
Specifications
| Compatible guns | Bernard® BTB and S-Gun™ MIG guns; legacy Q-Gun™, S-Gun™, and T-Gun™ guns made before June 2014 |
|---|---|
| Material | High-carbon music wire, round wound |
| Wire sizes | 0.023″–1/8″ (0.6–3.2 mm) |
| Lengths | 15′ (4.57 m) and 25′ (7.62 m); for 10′ guns, use the 15′ liner and trim to length |
| E-Z Feed™ technology | Standard on 0.035″–1/16″ liners (LD3A, LD4A) |
| Size identification | Color-coded shrink wrap |
| Aluminum wire | See conventional liners |
Part Numbers
| Part Number | Color | Description |
|---|---|---|
| L1A-15 | Yellow | 0.023″–0.030″ (0.6–0.8 mm) wire; 15′ (4.57 m) |
| L1A-25 | Yellow | 0.023″–0.030″ (0.6–0.8 mm) wire; 25′ (7.62 m) |
| L2A-15 | Green | 0.030″–0.035″ (0.8–0.9 mm) wire; 15′ (4.57 m) |
| L2A-25 | Green | 0.030″–0.035″ (0.8–0.9 mm) wire; 25′ (7.62 m) |
| LD3A-15* | White | 0.035″–0.045″ (0.9–1.2 mm) wire; 15′ (4.57 m); E-Z Feed™ |
| LD3A-25* | White | 0.035″–0.045″ (0.9–1.2 mm) wire; 25′ (7.62 m); E-Z Feed™ |
| LD4A-15** | Red | 0.045″–1/16″ (1.2–1.6 mm) wire; 15′ (4.57 m); E-Z Feed™ |
| LD4A-25** | Red | 0.045″–1/16″ (1.2–1.6 mm) wire; 25′ (7.62 m); E-Z Feed™ |
| L6A-15 | Blue | 5/64″ (2.0 mm) wire; 15′ (4.57 m) |
| L6A-25 | Blue | 5/64″ (2.0 mm) wire; 25′ (7.62 m) |
| L7A-15 | Grey | 3/32″ (2.4 mm) wire; 15′ (4.57 m) |
| L7A-25 | Grey | 3/32″ (2.4 mm) wire; 25′ (7.62 m) |
| L8A-15 | Black | 7/64″–1/8″ (2.8–3.2 mm) wire; 15′ (4.57 m) |
| L8A-25 | Black | 7/64″–1/8″ (2.8–3.2 mm) wire; 25′ (7.62 m) |
*Standard liner for guns using 0.035″ and 0.045″ wire. **Standard liner for guns using 1/16″ wire.
Liner Trim Lengths
| Consumable | Diffuser | Trim Length |
|---|---|---|
| AccuLock™ S | DS-A1-C, DS-A2-C | 5/8″ (15.9 mm) |
| AccuLock™ S | D-A1-C, D-A2-C | 3/4″ (19.1 mm) |
| Centerfire™ | D-1, DS-1 | 9/16″ (14.3 mm) |
| Centerfire™ | D-1T, D-1T-5 | 13/16″ (20.6 mm) |
| Centerfire™ | DS-1T | 5/8″ (15.9 mm) |
| Centerfire™ | DW-1 | 1/4″ (6.4 mm) |
| Quik Tip™ | D114 | 5/8″ (15.9 mm) |
| Quik Tip™ | D114Q | 9/16″ (14.3 mm) |
| Quik Tip™ | D118, D118Q | 3/4″ (19.1 mm) |
| Quik Tip™ | D118QLL | 1-5/16″ (33.3 mm) |
| Quik Tip™ | D218 | 7/8″ (22.2 mm) |
| TOUGH LOCK® | All retaining heads | 3/4″ (19.1 mm) |
