Home / Products / Clamps and Mounting Arms

Clamps and Mounting Arms

Built tough, TOUGH GUN® clamps and mounting arms from Tregaskiss are machined from solid extruded aluminum alloy so they won’t bend or break.

Engineered to fit the TOUGH GUN CA3 robotic air-cooled MIG gun, these clamps and mounting arms provide a wide bearing surface for optimum purchase and strength.

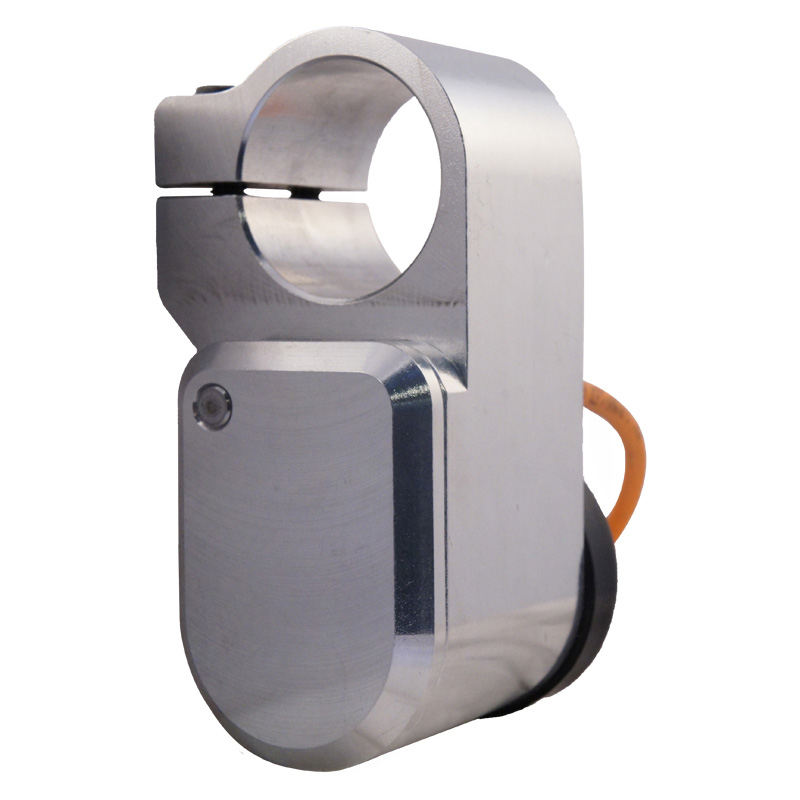

The clutch mount clamp triggers an e-stop in the event of a robotic collision, yet its new compact design allows for a larger working envelope

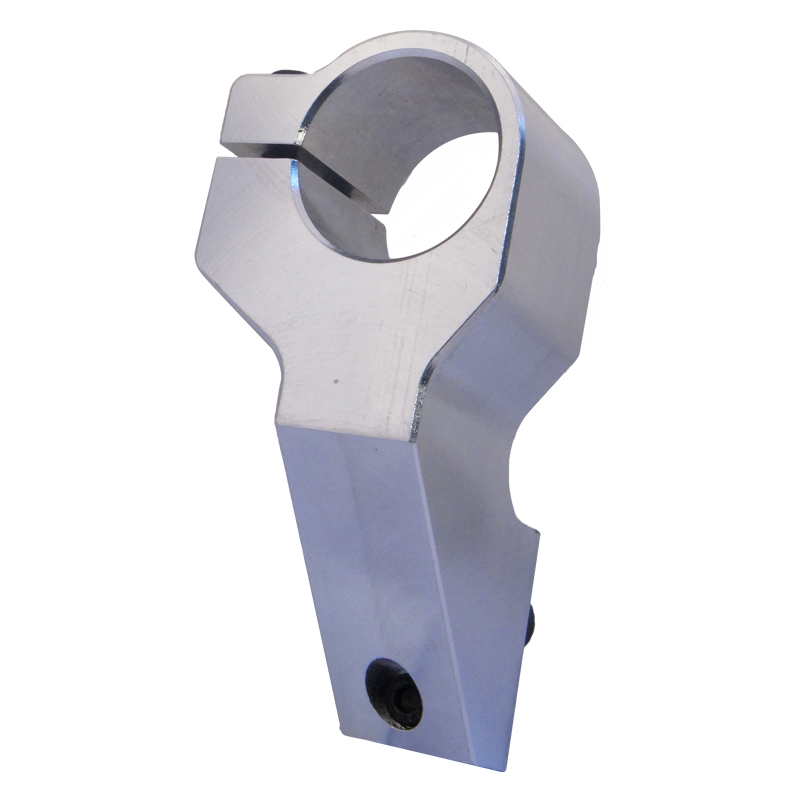

The solid mount clamp is available for clutchless models, offering the same increased working envelope
Two clamping screws ensure stability of the mounting arms

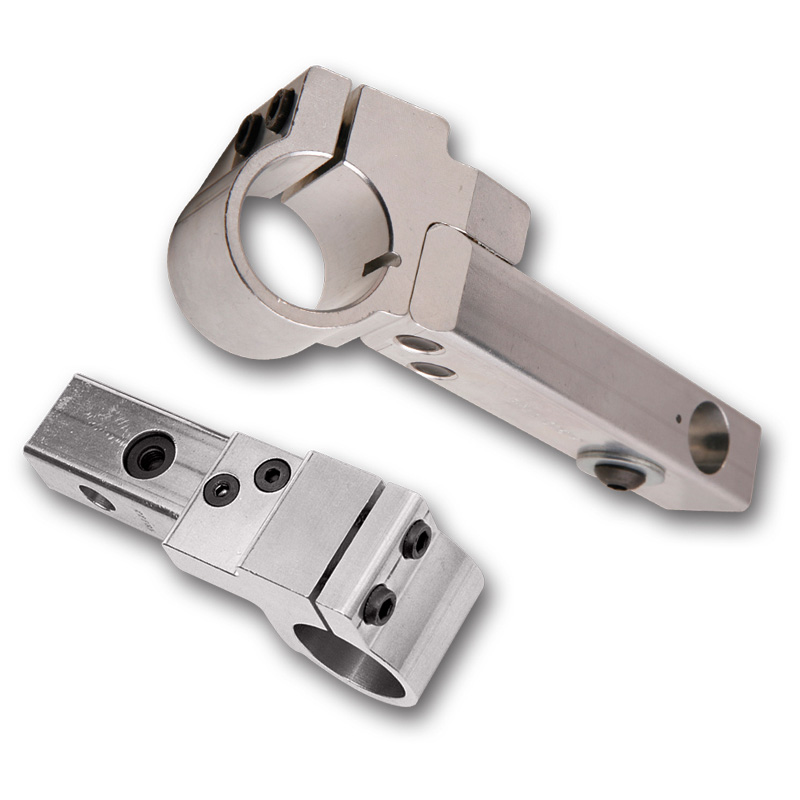

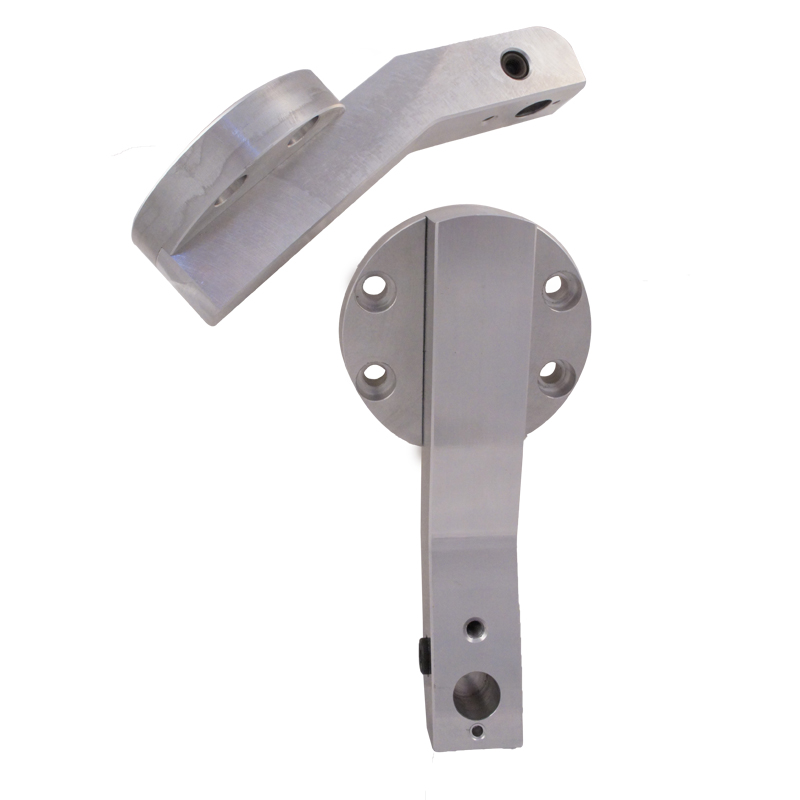

The mounting arm features a positive-stop keyway that precisely locates the key on the front housing whenever the MIG gun or components are replaced
Custom mounting arms available on request

TOUGH GUN Clamps

Part Number	Description
CACM	Clutch mount clamp for TOUGH GUN CA3 robotic air-cooled MIG guns
CASM	Solid mount clamp for TOUGH GUN CA3 robotic air-cooled MIG guns

Part Number	Description
CA2201	Mounting arm for 22 degree short length neck (part # 405-22QC); 316 mm TCP
CA2202	Mounting arm for 22 degree medium length neck (part # 405-22QCL); 350 mm TCP
CA2203	Mounting arm for 22 degree long length neck (part # 405-22QCL1); 400 mm TCP
CA4501	Mounting arm for 45 degree medium length neck (part # 405-45QCL); 350 mm TCP
CA4502	Mounting arm for 45 degree long length neck (part # 405-45QCL1); 400 mm TCP
CA1801	Mounting arm for 180 degree medium length neck (part # 405-180QC); 294 mm TCP
