QUICK LOAD® Liners

Tregaskiss® QUICK LOAD® liners install from the front of the gun in less than half the time of rear load liners, increasing uptime, cost savings, and safety.

CONSUMABLE

ROBOTIC & SEMI-AUTO GUNS

FRONT LOADING

GENUINE OEM

View product documentation Request more info

Replace in less than half the time
Change liners from a safe zone
No cutting or wasting wire

Overview

Save time and money by loading your liners from the front.

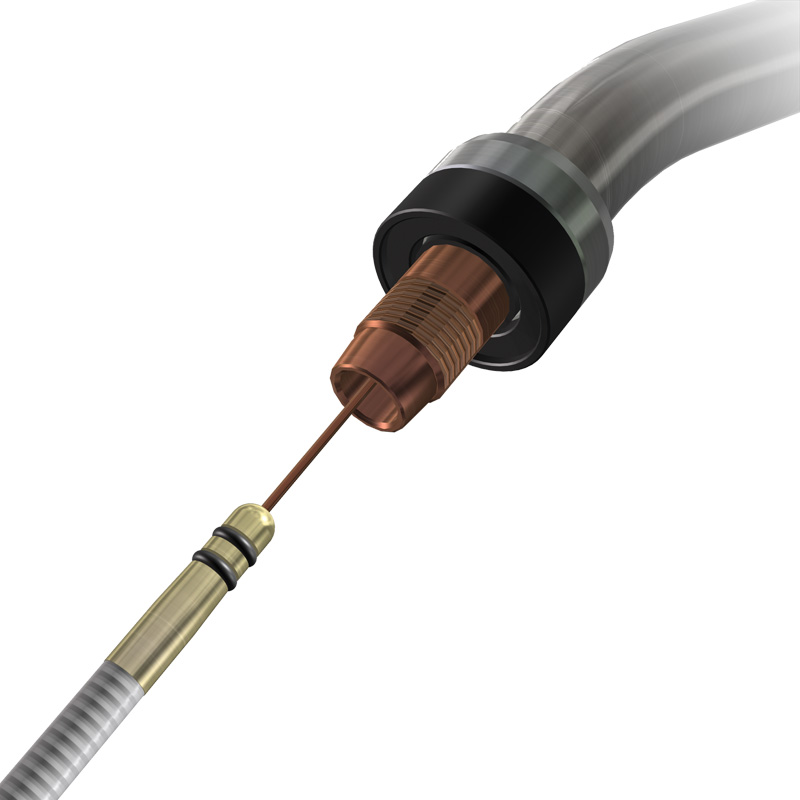

QUICK LOAD® liners install from the front of the MIG gun in less than half the time and effort of rear load liners, increasing uptime, cost savings, and safety. The two-piece system pairs a QUICK LOAD liner with a retainer that’s installed inside the power pin on first use; after that, the liner simply feeds in from the front. There’s no need to cut and waste wire, or to remove the torch from the wire feeder. In robotic cells, operators can change liners from a safe zone instead of climbing over tooling or transfer systems, and with semi-automatic guns on boom-mounted feeders, there’s no need to climb up to make the change.

The QUICK LOAD liner retainer is required for initial installation only and is sold separately.

Specifications

Compatible guns	Tregaskiss®Atlas, TA3 and CA3 robotic, MA1 and MW1 (600 A) fixed automatic; Bernard® BTB and TGX® semi-automatic

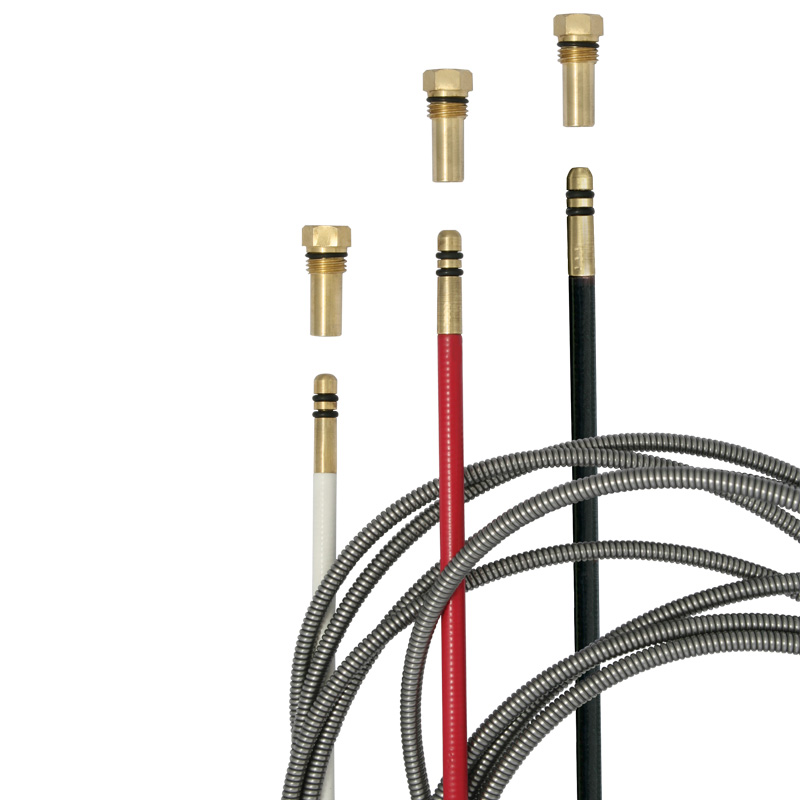

System components	QUICK LOAD® liner + QUICK LOAD® liner retainer (installed in the power pin on first use)
Wire sizes	0.035″–1/16″ (0.9–1.6 mm)
Lengths	Up to 15′ for robotic applications; up to 25′ for semi-automatic applications
Material	High-carbon steel, round wound
E-Z Feed™ option	Available in 0.035″–0.045″ and 0.045″–1/16″
Replacement time	Less than half the time and effort of rear load liners

Part Numbers

QUICK LOAD® Liners

Part Number	Description
415-35-6Q	0.035″–0.045″ (0.9–1.2 mm) wire; 6′ (1.8 m)
415-35-10Q	0.035″–0.045″ (0.9–1.2 mm) wire; 10′ (3.05 m)
415-35-15Q	0.035″–0.045″ (0.9–1.2 mm) wire; 15′ (4.57 m)
415-35-152Q	0.035″–0.045″ (0.9–1.2 mm) wire; 15′ (4.57 m); E-Z Feed™
415-35-25Q	0.035″–0.045″ (0.9–1.2 mm) wire; 25′ (7.62 m)
415-116-6Q	0.045″–1/16″ (1.2–1.6 mm) wire; 6′ (1.8 m)
415-116-10Q	0.045″–1/16″ (1.2–1.6 mm) wire; 10′ (3.05 m)
415-116-15Q	0.045″–1/16″ (1.2–1.6 mm) wire; 15′ (4.57 m)
415-116-152Q	0.045″–1/16″ (1.2–1.6 mm) wire; 15′ (4.57 m); E-Z Feed™
415-116-25Q	0.045″–1/16″ (1.2–1.6 mm) wire; 25′ (7.62 m)

QUICK LOAD® Liner Retainers (required for initial installation only; sold separately)

Part Number	Description
415-26	0.030″–5/64″ (0.8–2.0 mm) wire; for Tregaskiss® TOUGH GUN® robotic and fixed automatic guns and Bernard® BTB and TGX® guns
415-37	0.030″–5/64″ (0.8–2.0 mm) wire; for most Tweco® MIG guns
