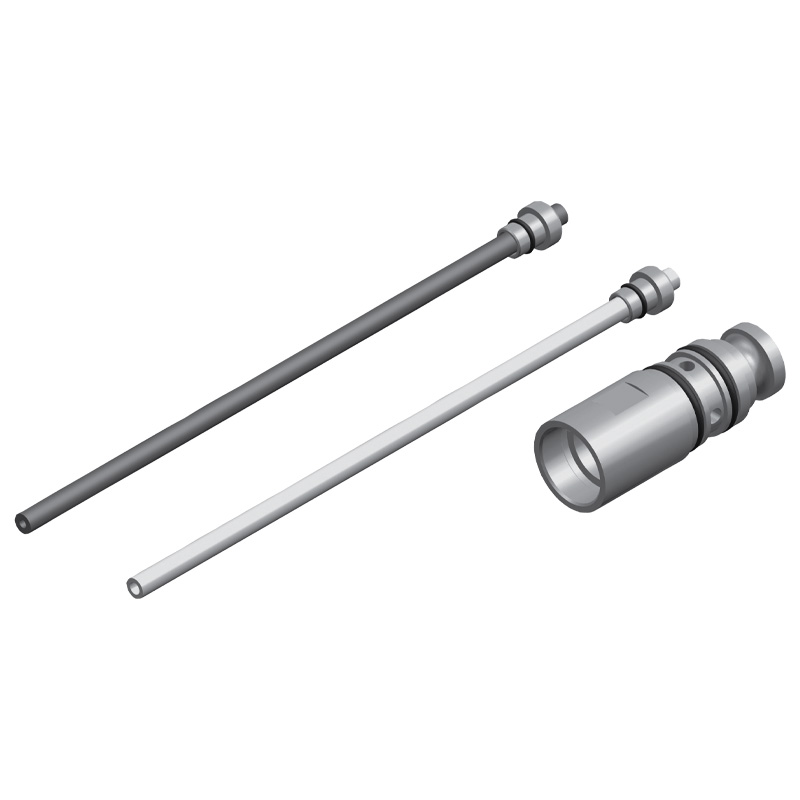

spool gun and push-pull conversion kit drawing

Spool Gun and Push Pull Gun Conversion Kits

These conversion kits of innovative Bernard front-end parts offer improved performance and productivity when used on other brands of spool and push-pull guns including those from Miller®, Profax® and Fronius®. Try Bernard® Centerfire™ consumables and our wide variety of interchangeable necks for greater flexibility.

  • Necks available in fixed, rotatable, flexible, and multiple length options for optimal weld accessibility and improved operator comfort
  • Centerfire™ consumables provide better arc starts, less spatter and more consistent welds
  • Centerfire consumables fit most competitive brand guns to enhance performance and allows standardization of one contact tip and nozzle to minimize inventory management costs
  • Jump Liner allows for quick neck change and replacement of only the most commonly worn or clogged liner area, which reduces the amount of time a gun is offline and minimizes inventory
  • Available for use with Miller®, Profax®, and Fronius® MIG guns
  • Necks available in fixed, rotatable, flexible, and multiple length options
  • Compatible with Centerfire™ consumables
  • Available for use with Miller®, Profax® and Fronius® MIG guns

Kit includes:

Part NumberDescription
4929PO-ring (2 required)
1910042Aluminum jump liner for 0.035″ (0.9 mm) – 3/64″ (1.2 mm) wire, SGA kit
1910043Aluminum jump liner for 3/64″ (1.2 mm) – 1/16″ (1.6 m) wire, SGA kit
1010026AAdaptor with o-rings

Kit includes:

Part NumberDescription
2040019PO-ring (2 required)
2030031Retaining nut, XR-AlumaPro
1910042Aluminum jump liner for 0.035″ (0.9 mm) – 3/64″ (1.2 mm) wire, SGA kit
1910043Aluminum jump liner for 3/64″ (1.2 mm) – 1/16″ (1.6 m) wire, SGA kit
1010033Adaptor without o-rings

Kit includes:

Part NumberDescription
2040019PO-ring (2 required)
2030031Retaining nut, AlumaPro
1010033Adaptor without o-rings
1910044Aluminum jump liner for 0.035″ (0.9 mm) – 3/64″ (1.2 mm) wire, SGA kit
1910045Aluminum jump liner for 3/64″ (1.2 mm) – 1/16″ (1.6 m) wire, SGA kit
Part NumberDescription
QT2-3030 degree neck, short length
QT2-4545 degree neck, short length
QT2-6060 degree neck, short length
QT2-8080 degree neck, short length
QT3-3030 degree neck, medium length
QT3-4545 degree neck, medium length
QT3-6060 degree neck, medium length
QT3-8080 degree neck, medium length
QT5-3030 degree neck, long length
QT5-4545 degree neck, long length
QT5-6060 degree neck, long length
QT-180-3Straight neck, 3″ length
QT-180-5Straight neck, 5″ length
QT-180-7Straight neck, 7″ length
QT-180-12Straight neck, 12″ length
QT-180-18Straight neck, 18″ length
QT-180-24Straight neck, 24″ length
QT2-45-1245 degree neck, 12″ extended length
QT2-45-1845 degree neck, 18″ extended length
QT2-45-2445 degree neck, 24″ extended length
QT-F-6Flex neck, 6″ length
QT-F-8Flex neck, 8″ length
