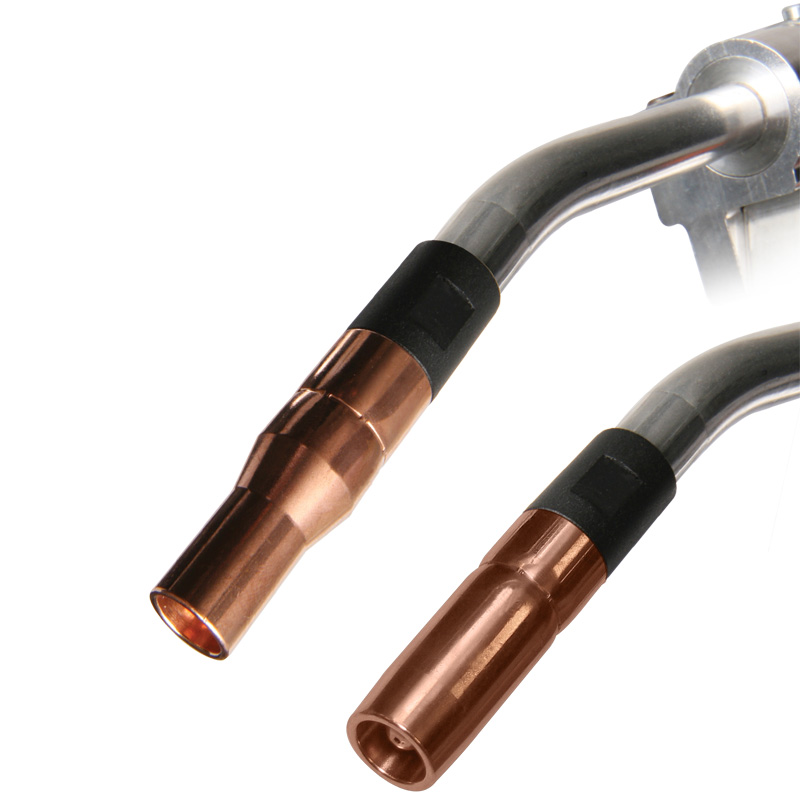

TOUGH ACCESS® consumables are a sleek line of consumables (including retaining heads and nozzles) that allow entry into those hard-to-reach places that would otherwise be inaccessible due to fixture design or weldment.
Available in straight bore (5/8″) and bottleneck (1/2″) style nozzles, these unique consumables are compatible with TOUGH LOCK® contact tips and TOUGH GUN® aluminum armored necks.
*Standard Duty consumables are recommended for use with bottleneck style nozzles
| Part Number | Description |
|---|---|
| 404-50-25 | Heavy Duty Retaining Head |
| 404-54-25 | Standard Duty Retaining Head |
| Part Number | Description |
|---|---|
| 402-17-25 | Neck Insulator |
| Part Number | Description |
|---|---|
| 401-54-62 | Straight bore – 5/8” bore, 1/8” tip recess, straight inside bore |
| 401-56-62 | Straight bore – 5/8” bore, 1/8” tip stick out, straight inside bore |
| 401-55-50 | Bottleneck* – 1/2″ bore, flush tip, tapered inside bore |
| 401-56-50 | Bottleneck* – 1/2″ bore, 1/8” tip stick out, tapered inside bore |
| 401-57-50 | Bottleneck* – 1/2″ bore, 1/4″ tip stick out, tapered inside bore |
*Standard Duty consumables are recommended for bottleneck style nozzles
| Part Number | Description |
|---|---|
| AS-306-5 | for 180 degree medium length neck (part # 405-180QC) |
| AS-306-6 | for 22 degree short length neck (part # 405-22QC) |
| AS-306-7 | for 45 degree short length neck (part # 405-45QC) |
| Part Number | Description |
|---|---|
| RCT-05 | 1/2″ Reamer Cutter Blade (for standard duty only) |
| RCT-10 | 5/8″ Reamer Cutter Blade (for heavy duty only) |
| TR-2150 | V-Block for 0.850″ O.D. nozzles |
