Home / Products / Dura-Flux Self-Shielded Flux-Cored Gun with Replaceable Cable Liner

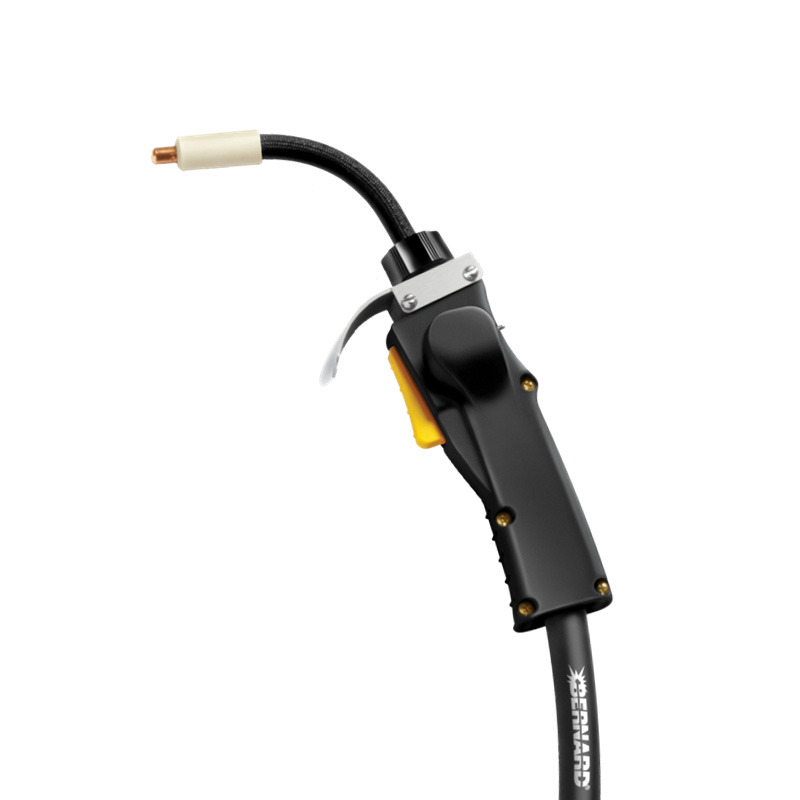

Dura-Flux self-shielded flux-cored gun with replaceable power cable liner

Dura-Flux Self-Shielded Flux-Cored Gun with Replaceable Cable Liner

Built to meet the needs of harsh and demanding environments, Bernard introduces the Dura-Flux FCAW gun with replaceable power cable liner that is extremely durable yet comfortable to hold and use.

Self-shielded flux-cored welding can be brutal on both you can your welding equipment. That’s why Bernard designed the Dura-Flux™ self-shielded flux-cored gun to be extremely durable, yet comfortable to hold and use.

Our Dura-Flux FCAW guns meet the demanding needs and harsh environments of construction, shipbuilding, heavy manufacturing and rental applications. Triggers are non-metallic to absorb less heat. The triggers are also made with a sealed micro switch that helps keep out dust and dirt to promote a long-lasting work life.

more...

Overview
Specs
Consumables

Replaceable power cable liner allows for quick and easy power cable maintenance
Optional dual schedule switch for wire speed adjustment while welding is integrated into the handle to keep it protected from weld spatter
Internal trigger leads mean no trigger cord to get caught on surrounding objects
Lightweight, rotatable Hi-Viz™ neck reduces user fatigue and improves weld visibility
Provides operator with 350 amp of welding capability
Quik Tip™ contact tips are designed with a threaded taper lock that increases tip life by providing excellent heat transfer and electrical conductivity
Available in multiple cable length options: 8, 10, 12, 15, 20 and 25 feet
Amperage rating of 350 amp
Small trigger guard provides increased maneuverability and provides more access to weld joints

Processes

Self-Shielded Flux-Cored (FCAW-SS) welding

Duty Cycle Rating

60% NEMA at 350 Amps

Specifications

Amperage rating up to 350 amps
Compatible with various wire feeders from major manufacturers
Advanced molded handle design provides comfort and reduces user fatigue
Available in a variety of different neck lengths and styles
Features a Hi-Viz™ neck which improves weld visibility while reducing user fatigue
Internal trigger leads
Optional dual schedule switch
Available for wire sizes between 0.045″ (1.2 mm) and 1/16″(16. mm)

Quik Tip™ Contact Tips

Part Number	Description
T1045	0.045″ (1.2 mm)
T1052	0.052″ (1.4 mm)
T1116	1/16″ (1.6 mm)
